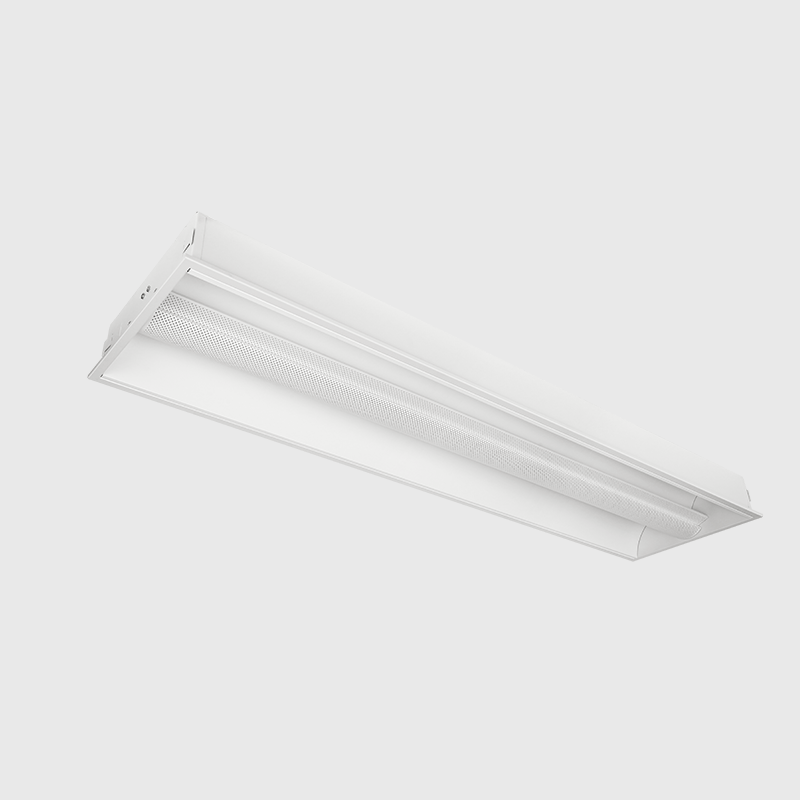

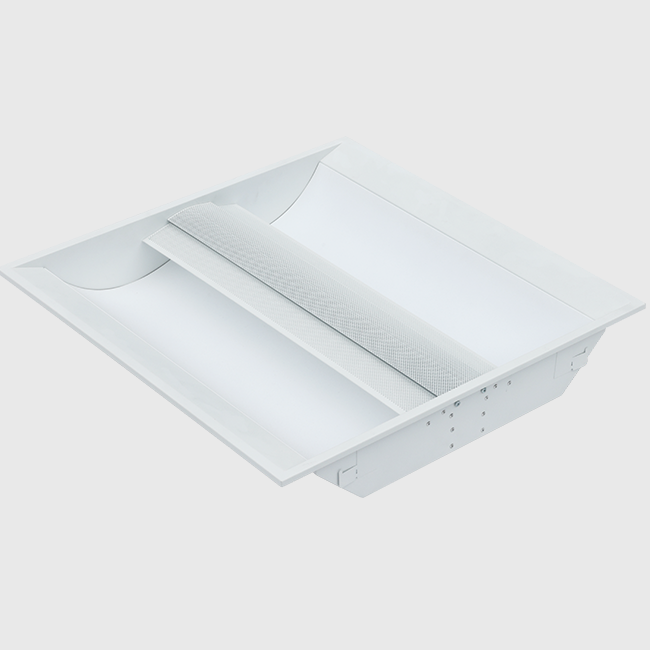

TF19
■ Integrated design with direct & indirect lighting ■ Low anti glare UGR<19 with efficiency 105lm/w (CRI90) ■ Sheet steel construction with highly reflective textured powder painting ■ Designed for a standard T-Bar grid, also suitable for plaster ceilings by using plaster master frames ■ Available at 600x600mm & 1200x300mm and customized size ■ Non-dim and DALI as standard. Various control options are available via customization ■ Emergency or sensor options available ■ Air ventilation slot available
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageFrequency RangeCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP20>5 Years10~45W220-240Vac50/60Hz80+120°Cold Rolled Steel-20℃ ~ 40℃Recessed
  • Dimensions

    TF19 尺寸图2.png

    TF19 尺寸图1.png

  • Technical Data
    Item CodeDimensions L x W x H (mm)Power ConsumptionColour TemperatureCRILuminous EfficiencyLumen Output(LM)Weight（KG)

    LIF-TF19BB066DDEEFF

    		595x595x9610W
    14W
    17W
    20W
    23W
    26W
    30W
    40W
    45W

    4000K

    		80+115 lm/w

    1150

    1600

    1900

    2300

    2600

    3000

    3450

    4600

    5100

    		3.6

    LIF-TF19BB123DDEEFF

    		1195x295x9610W
    14W
    17W
    20W
    23W
    26W
    30W
    40W
    45W    		4000K80+115 lm/w

    1150

    1600

    1900

    2300

    2600

    3000

    3450

    4600

    5100

    		3.6

    Suffix “DD” can be 27, 30, 35, 40, 45, 50, 57, 65, indicating the different CCT multiply by 100 in K.

    Suffix “EE” can be 80, 85, 90, 95, indicating the different CRI of LED.

    Suffix “FF” can be 19, 22, indicating the different UGR of light.
