TF01LEDiFurture

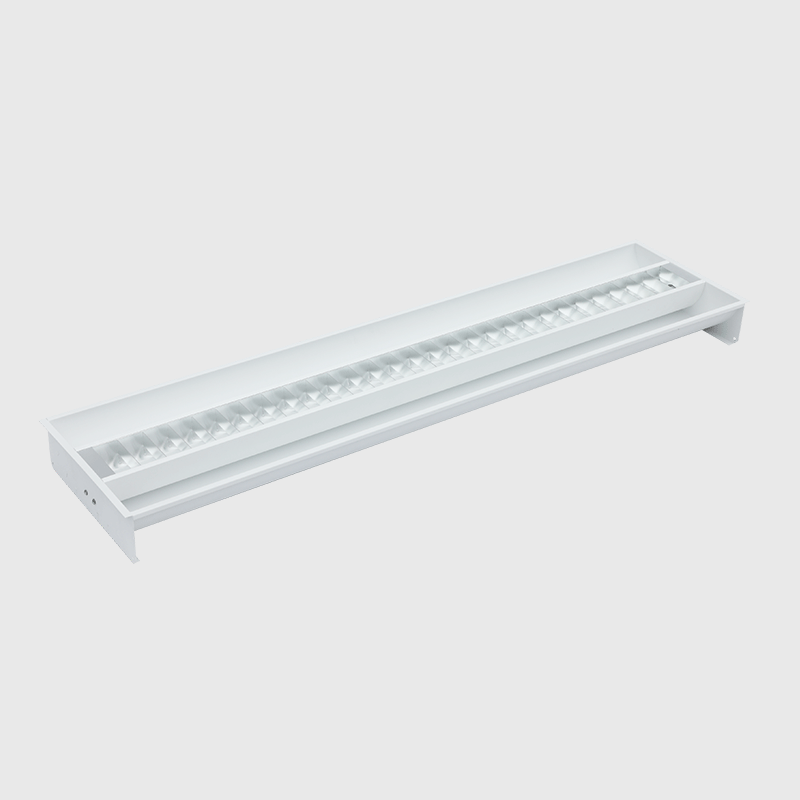

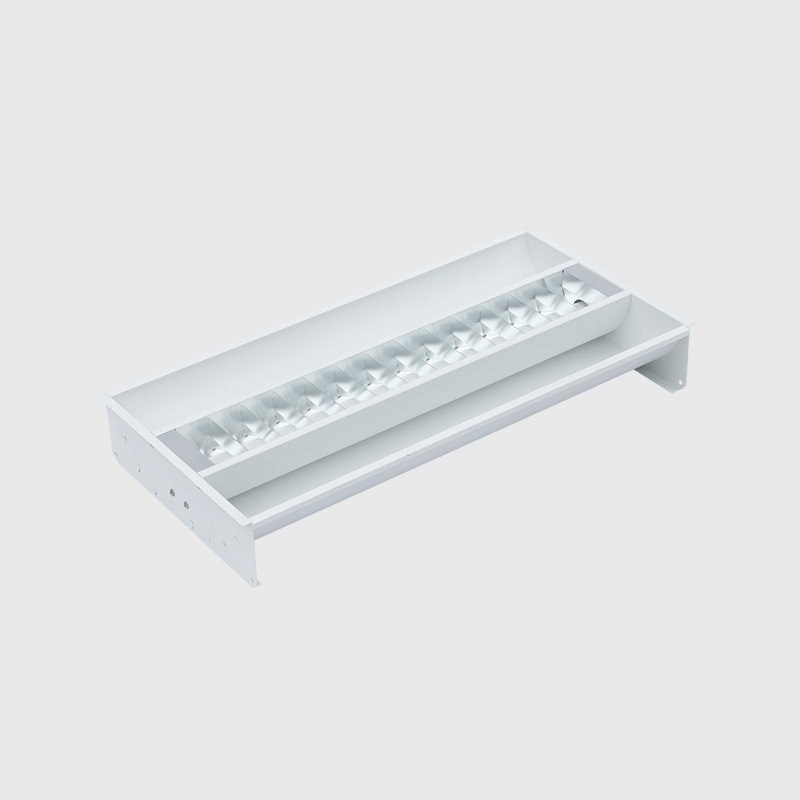

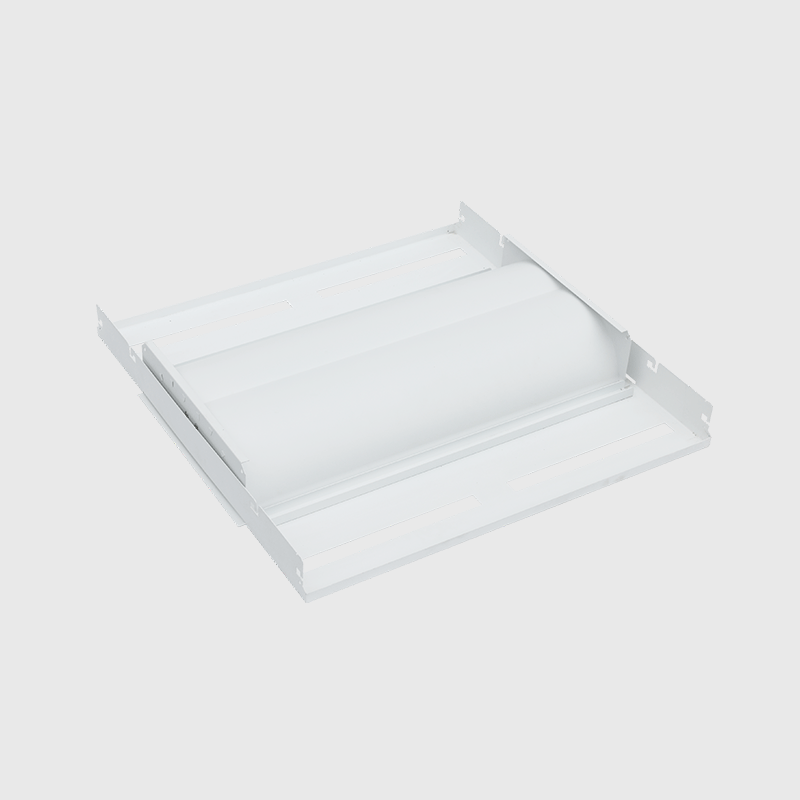

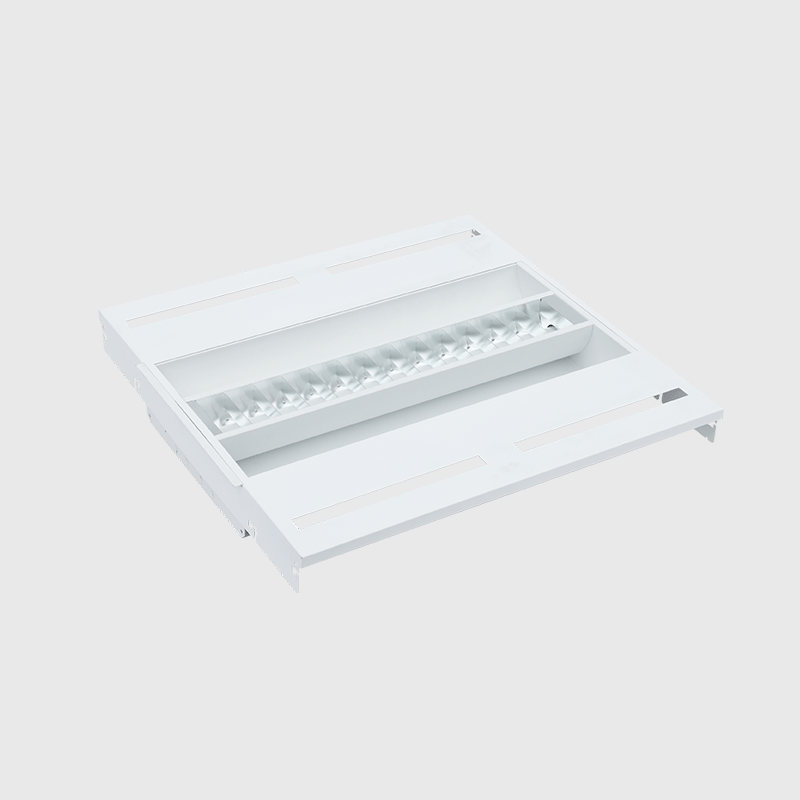

TF01

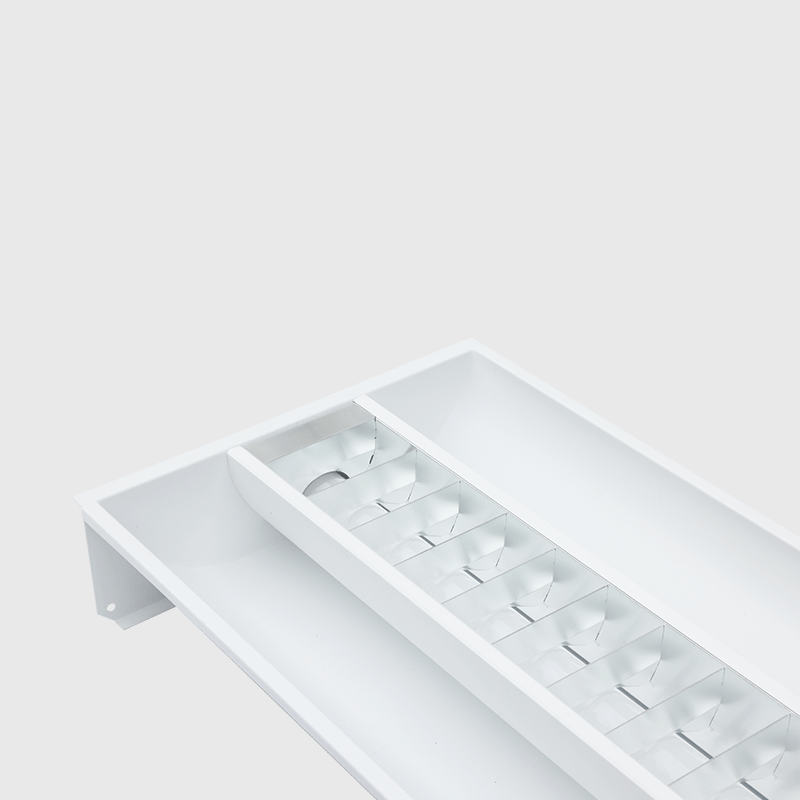

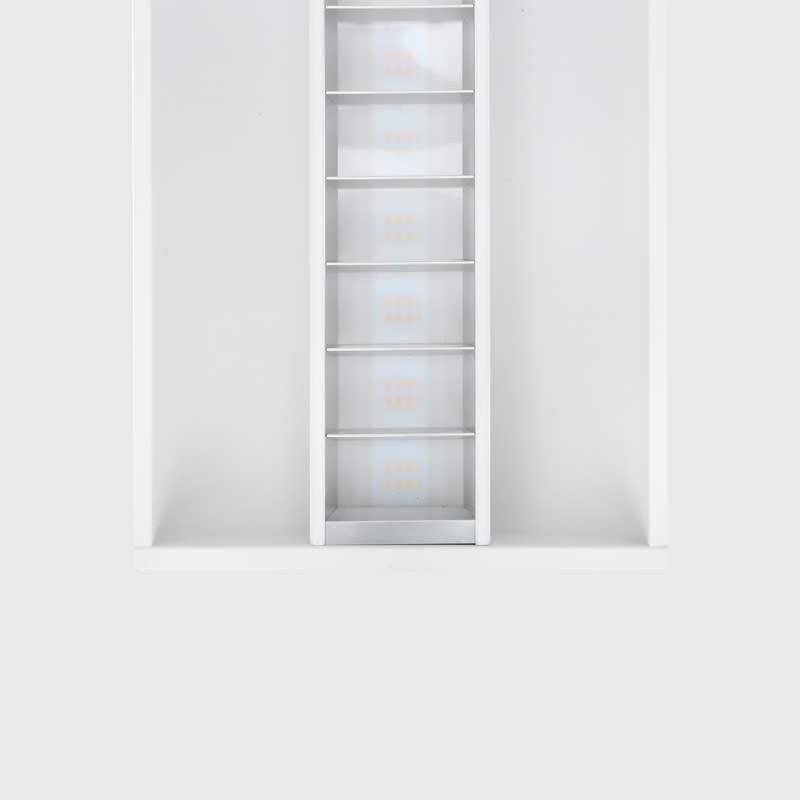

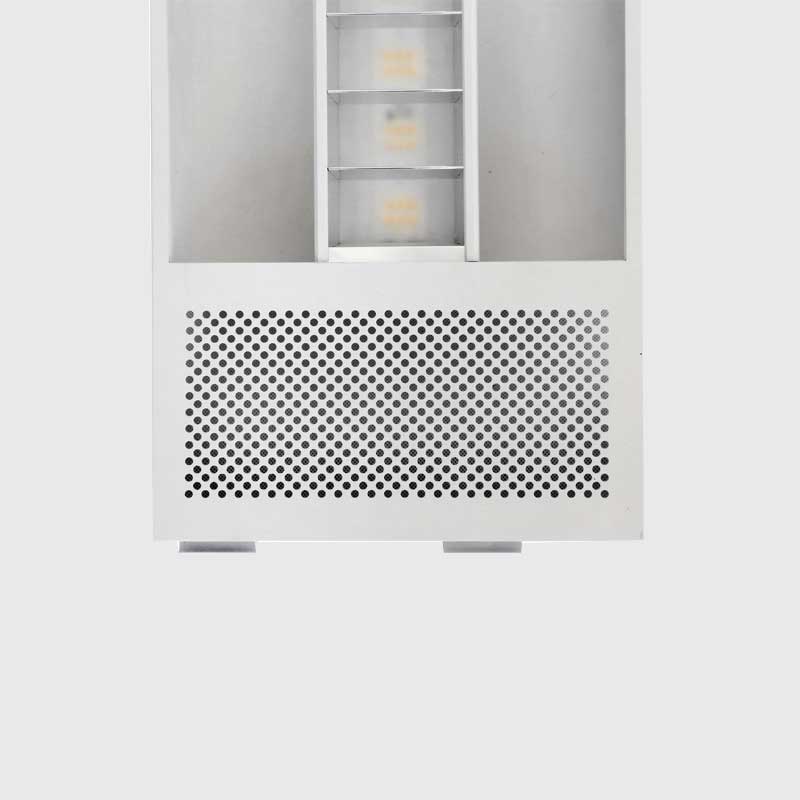

■ Integrated design with direct & indirect lighting ■ Sheet steel construction with highly reflective textured powder painting ■ Reflector louver is made of highly efficient Alanod Miro 5 ■ High efficiency 120lm/w ■ Designed for a standard T-Bar grid, also suitable for plaster ceilings by using plaster master frames ■ Available at 600x300mm，600x600mm, 1200x300mm & 1200x600mm and customized size ■ Non-dim and DALI as standard. Various control options are available via customization ■ Emergency or sensor options available ■ Air ventilation slot available.

Consult

General Specifications

IP Rating Warranty Watts Input Voltage CRI Beam Angle Housing Material Ambient Temperature Mounting
IP40 >5 Years 8~42W 220-240Vac 80+ 120° Cold Rolled Steel -20℃ ~ 40℃ Recessed
Dimensions

IP Rating	Warranty	Watts	Input Voltage	CRI	Beam Angle	Housing Material	Ambient Temperature	Mounting
IP40	>5 Years	8~42W	220-240Vac	80+	120°	Cold Rolled Steel	-20℃ ~ 40℃	Recessed

Technical Data

Item Code	Dimensions L x W x H (mm)	Power Consumption	Colour Temperature	CRI	Luminous Efficiency	Lumen Output(LM)	Weight(KG)
LIF-TF01BB063DDEEFF	595x295x62	8W 10W 12W 14W 20W 24W 28W 32W 36W 42W	4000K	80+	120 lm/w	960 1200 1400 1600 2400 2800 3300 3800 4300 5000	2.1
LIF-TF01BB066DDEEFF	595x595x80	8W 10W 12W 14W 20W 24W 28W 32W 36W 42W	4000K	80+	120 lm/w	960 1200 1400 1600 2400 2800 3300 3800 4300 5000	4.1
LIF-TF01BB123DDEEFF	1195x295x62	8W 10W 12W 14W 20W 24W 28W 32W 36W 42W	4000K	80+	120 lm/w	960 1200 1400 1600 2400 2800 3300 3800 4300 5000	4.3
LIF-TF01BB126DDEEFF	1195x595x80	8W 10W 12W 14W 20W 24W 28W 32W 36W 42W	4000K	80+	120 lm/w	960 1200 1400 1600 2400 2800 3300 3800 4300 5000	8.0
Suffix “DD” can be 27, 30, 35, 40, 45, 50, 57, 65, indicating the different CCT multiply by 100 in K. Suffix “EE” can be 80, 85, 90, 95, indicating the different CRI of LED. Suffix “FF” can be 19, 22, indicating the different UGR of light.
