TF15

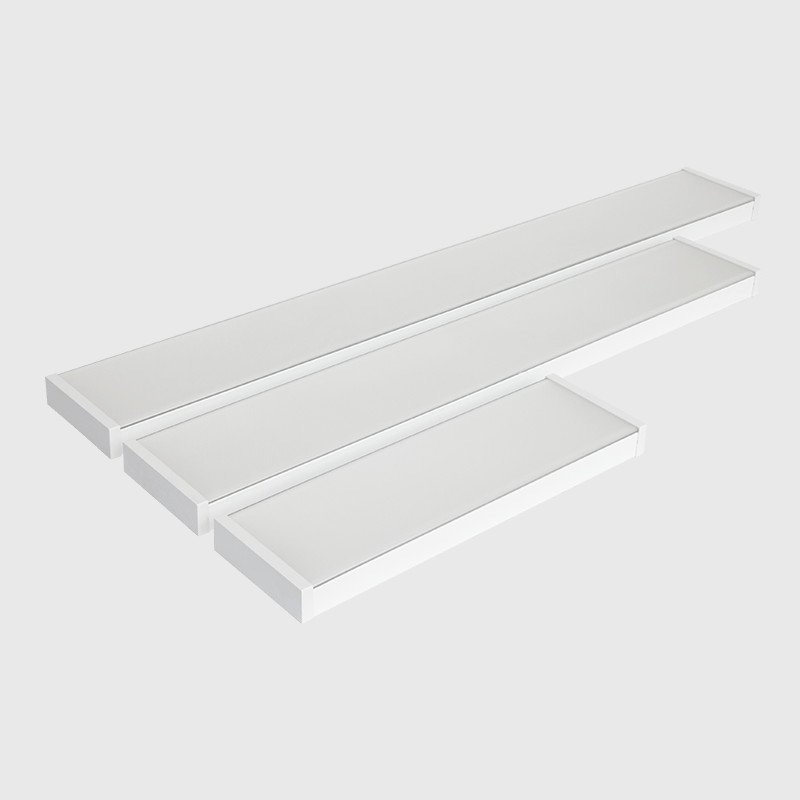

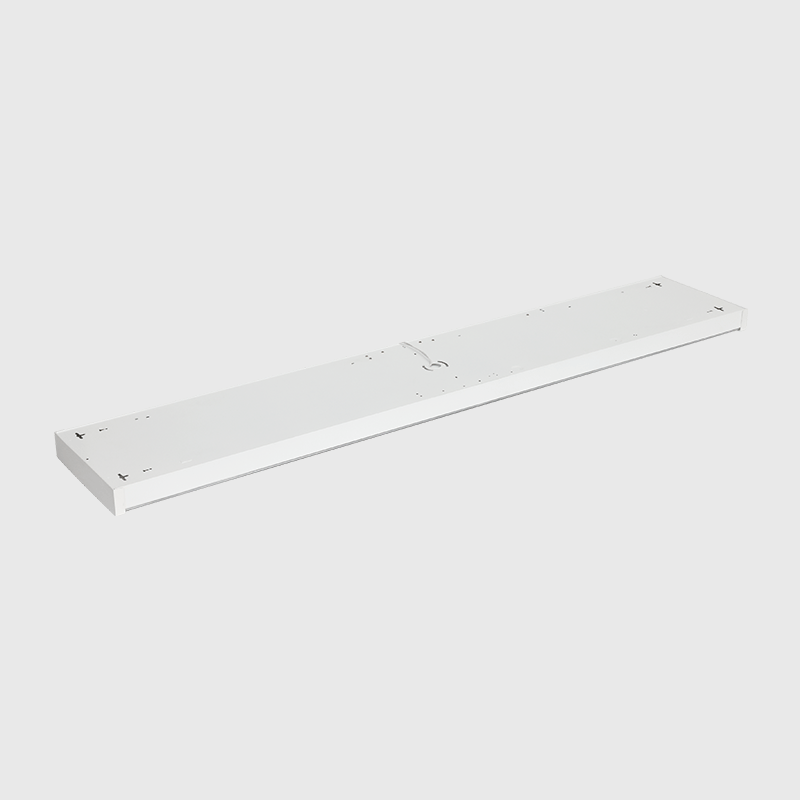

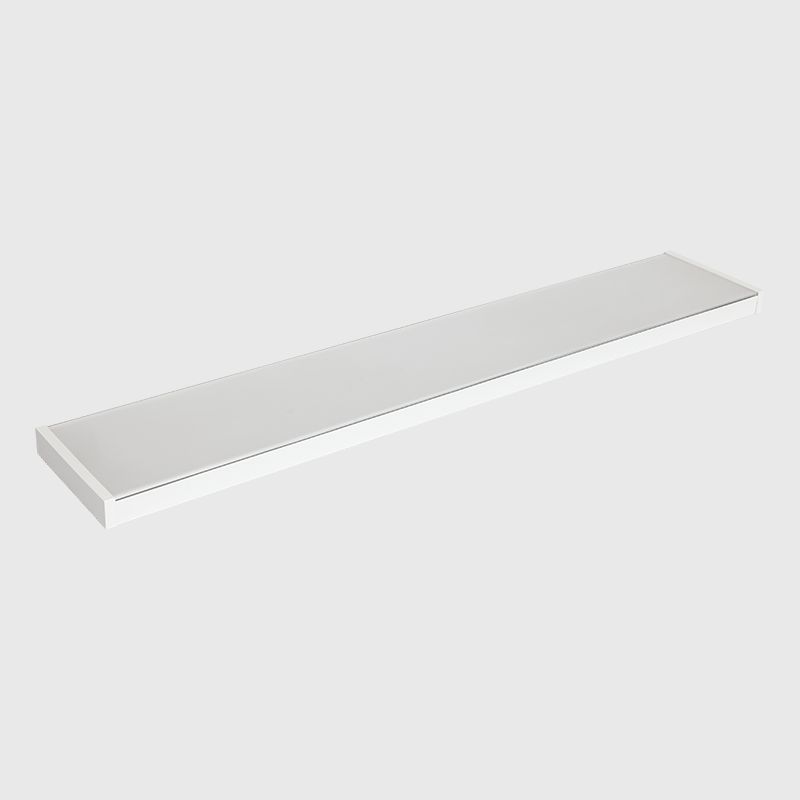

■ UGR 19 with efficiency >115lm/W ■ Body of sheet steel construction with polyester powder coating ■ Excellent prismatic diffuser offers an uniform illuminated appearance ■ Seamless linkable ■ Compact structure design ■ Available at 600mm, 1200mm & 1500mm length ■ Surface mounted as standard. Can be suspended with suspension kit. ■ Non-dim and DALI as standard. Various control options are available via customization ■ Emergency options available ■ One fitting multiple fixed wattages/fixed lumen outputs. ■ Less stocked items
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageFrequency RangeCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP20>5 Years21~72W220-240Vac50/60Hz80+100°Cold Rolled Steel-20℃ ~ 40℃Surface or Suspension Mounted
  • Dimensions

    TF15 尺寸图.png


  • Technical Data
    Item CodeDimensions L x W x H (mm)Power ConsumptionColour TemperatureCRILuminous EfficiencyLumen Output(LM)Weight(KG)
    LIF-TF15BB062DDEEFF665x205x5421W
    26W
    32W
    36W    		4000K80+115 lm/w2400
    3000
    3600
    4100    		2.4
    LIF-TF15BB122DDEEFF1265x205x5435W
    43W
    45W
    54W    		4000K80+115 lm/w4000
    4900
    5100
    6200    		4.4
    LIF-TF15BB152DDEEFF1565x205x5455W
    60W
    66W
    72W    		4000K80+110 lm/w6000
    6600
    7200
    7900    		5.4
    LIF-TF15BB062DDEEFFD665x205x5416W
    18W
    22W
    26W    		4000K80+115 lm/w1800
    2000
    2500
    3000


    2.4

    LIF-TF15BB122DDEEFFD1265x205x5425W
    30W
    36W
    40W    		4000K80+115 lm/w2800
    3400
    4100
    4600    		4.4
    LIF-TF15BB152DDEEFFD1565x205x5445W
    52W
    60W
    70W    		4000K80+110 lm/w4900
    5700
    6600
    7700    		5.4

    Suffix “DD” can be 27, 30, 35, 40, 45, 50, 57, 65, indicating the different CCT multiply by 100 in K.

    Suffix “EE” can be 80, 85, 90, 95, indicating the different CRI of LED.

    Suffix “FF” can be 19, 22, indicating the different UGR of light.

    Suffix “D” means dimmable.
