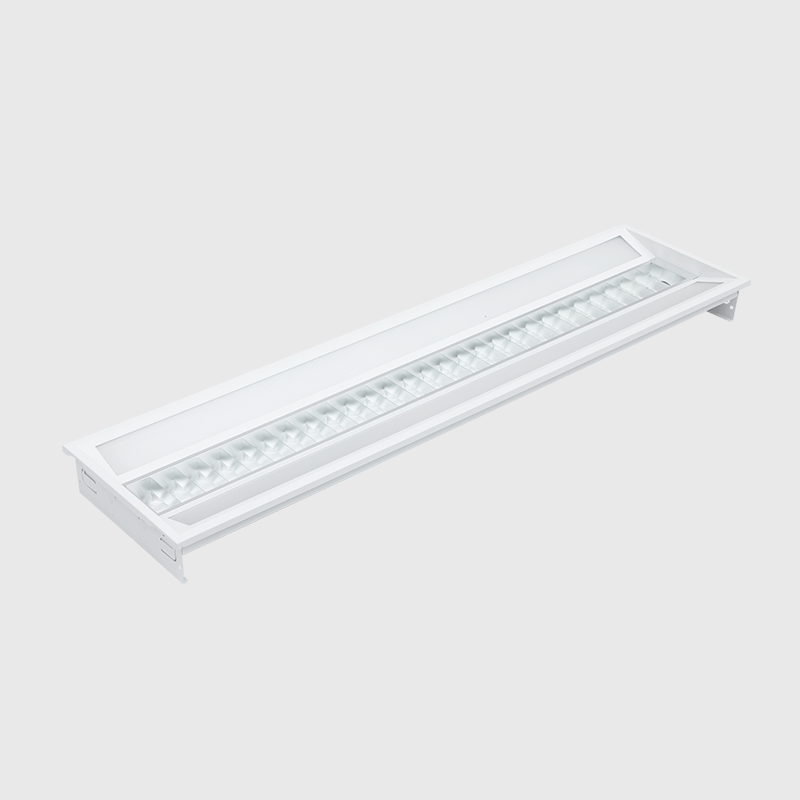

TF20

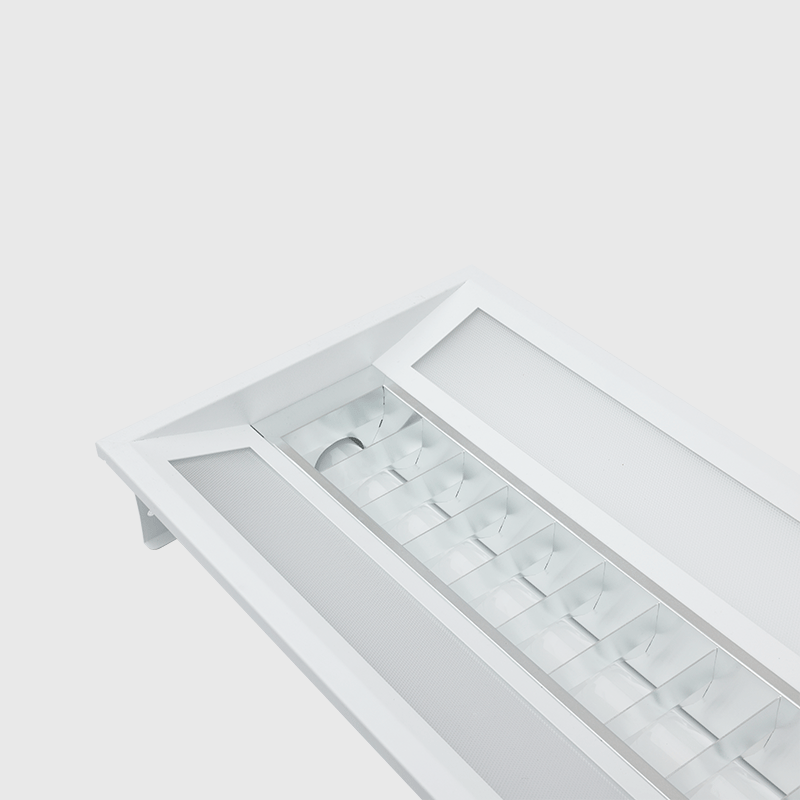

■ Low Glare Rate UGR<19 ■ Sheet steel construction with highly reflective textured powder painting ■ Reflector louver is made of highly efficient Alanod Miro 5 ■ High efficiency 120lm/w ■ Designed for a standard T-Bar grid, also suitable for plaster ceilings by using plaster frames ■ Available at 1200x300mm and customized size ■ Non-dim and DALI as standard. Various control options are available via customization ■ Emergency or sensor options available
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageFrequency RangeCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP20>5 Years20~42W220-240Vac50/60Hz80+120°Cold Rolled Steel-20℃ ~ 40℃Recessed
  • Dimensions



  • Technical Data
    Item CodeDimensions L x W x H (mm)Power ConsumptionColour TemperatureCRILuminous EfficiencyLumen Output(LM)Weight(KG)
    LIF-TF20BB123DDEEFF1195x295x87

    20W

    24W

    28W

    32W

    36W

    42W

    		4000K
    		80+120 lm/w

    2400

    2800

    3300

    3800

    4300

    5000

    		4.4

    Suffix “DD” can be 27, 30, 35, 40, 45, 50, 57, 65, indicating the different CCT multiply by 100 in K.

    Suffix “EE” can be 80, 85, 90, 95, indicating the different CRI of LED.

    Suffix “FF” can be 19, 22, indicating the different UGR of light.
