BT06

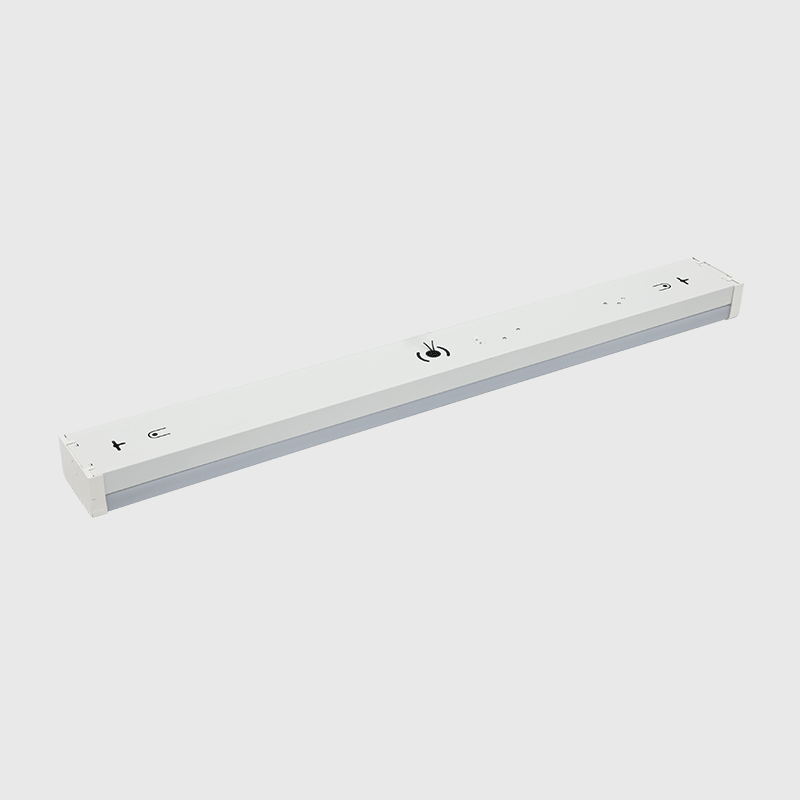

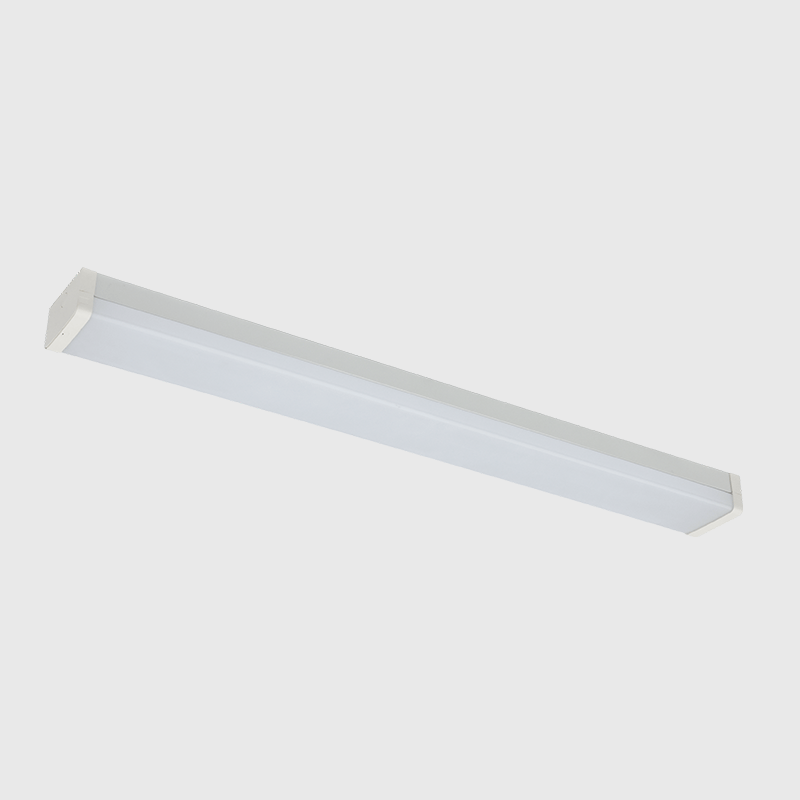

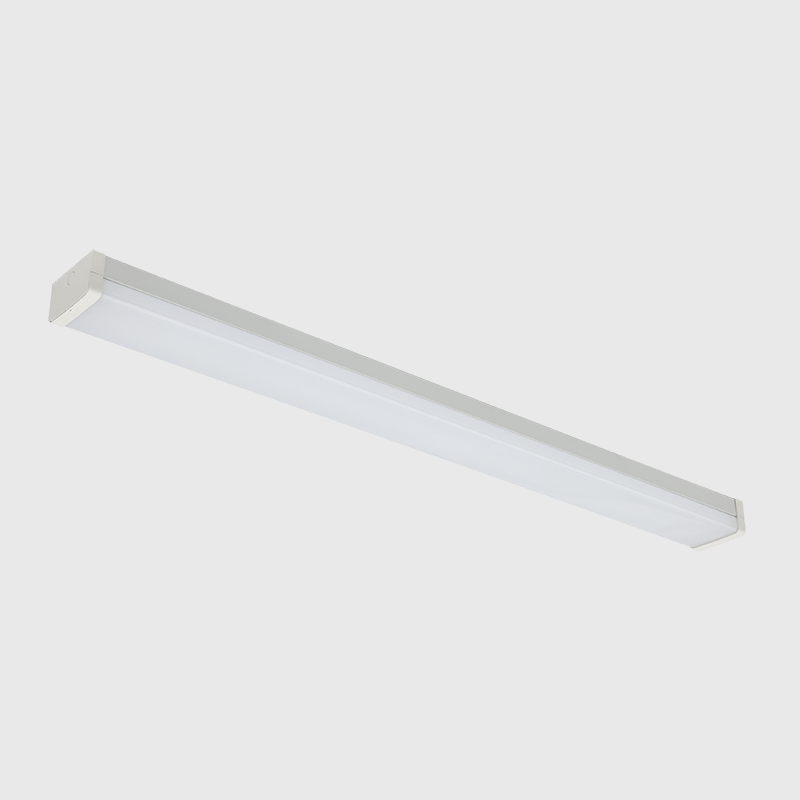

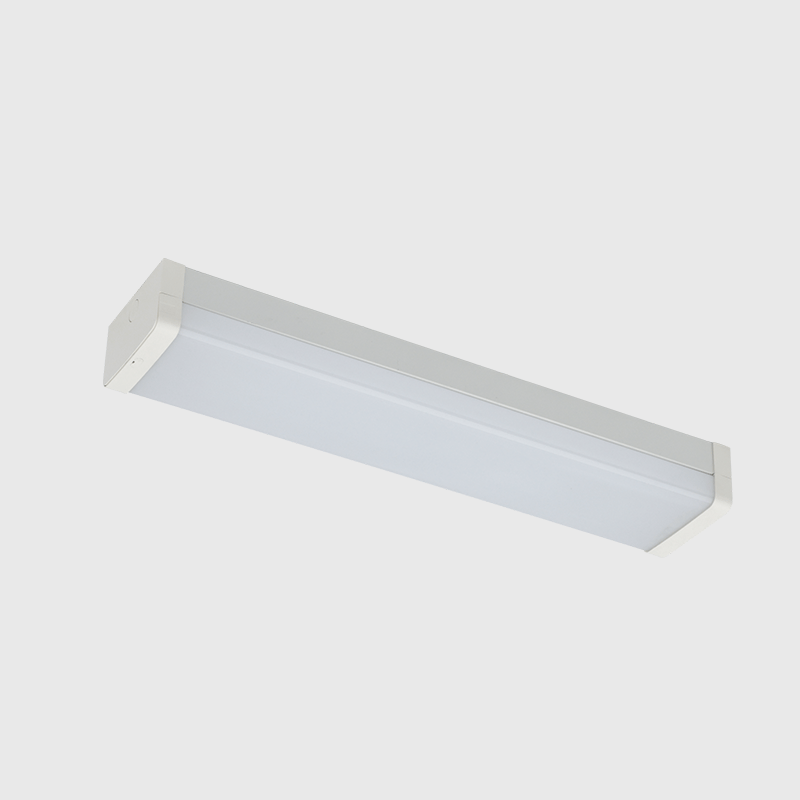

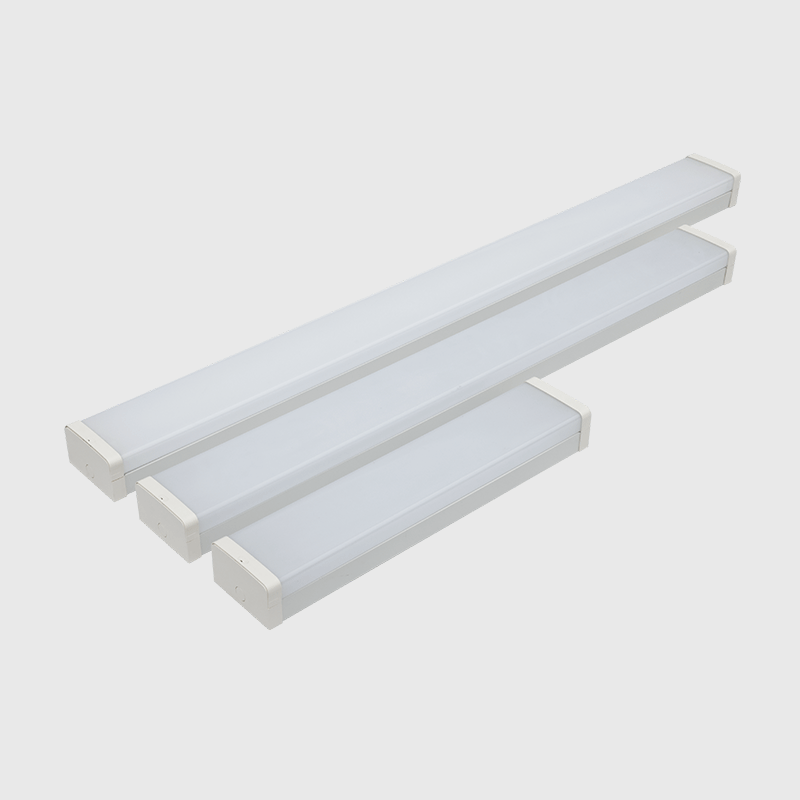

■ 130mm Wide body of sheet steel construction with polyester powder coating ■ Quick and easy to install, high efficiency (130lm/W) ■ Opal PC diffuser for even light distribution ■ Available at 0-10V dimming, DALI dimming, Motion Sensor, Color Selectable & Lumen Selectable,Emergency Backup Kit ■ Available for surface mounted, suspended or wall mounted installation ■ Length: 600mm, 1200mm, 1500mm
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP20>5 Years20-60WAC 220-240V80+120°Cold Rolled Steel-20℃ ~ 40℃Surface&Supended
  • Dimensions


  • Technical Data
    Item CodeDescriptionPower Selectable（W）Efficiency(lm/w)

    CCT(K) (3 Levels)

    		Dimensions(mm)Weight(KG)
    LIF-BT06BB2DDEEBT06 20W 2FT Color Selectable18W130
    		2700-6500630X130X741.4
    LIF-BT06BB2DDEEDBT06 20W 2FT Color Selectable+Sensor18W1302700-6500630X130X741.5
    LIF-BT06BB2DDEE/MEBT06 20W 2FT Color Selectable +EM18W1302700-6500630X130X741.9
    LIF-BT06BB4DDEEBT06 40W 4FT Color Selectable36W/30W/25W/20W130
    		2700-65001230X130X742.6
    LIF-BT06BB4DDEEDBT06 40W 4FT Color Selectable+Sensor36W/30W/25W/20W1302700-65001230X130X742.7
    LIF-BT06BB4DDEE/MEBT06 40W 4FT Color Selectable+ EM36W/30W/25W/20W1302700-65001230X130X743.1
    LIF-BT06BB5DDEEBT06-50W 5FT Color Selectable50W/45W/35W/30W130
    		2700-65001530X130X743.1
    LIF-BT06BB5DDEEDBT06 50W 5FT Color Selectable+Sensor50W/45W/35W/30W1302700-65001530X130X743.2
    LIF-BT06BB5DDEE/MEBT06 50W 5FTColor Selectable+ EM50W/45W/35W/30W1302700-65001530X130X743.5
    Suffix “DD” can be 27, 30, 35, 40, 45, 50, 57, 65 or CS, indicating the different CCT of LED multiply by 100 in K,

    CS means white-tunable over a range of 2700K-6500K.

    Suffix “EE” can be 80, 85, 90, 95, indicating the different CRI of LED.
