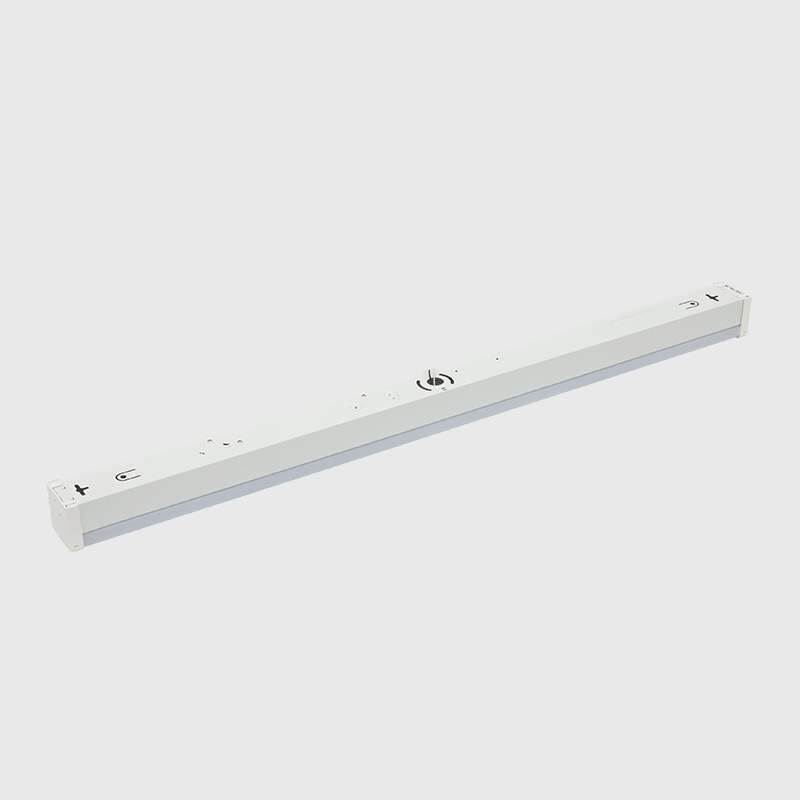

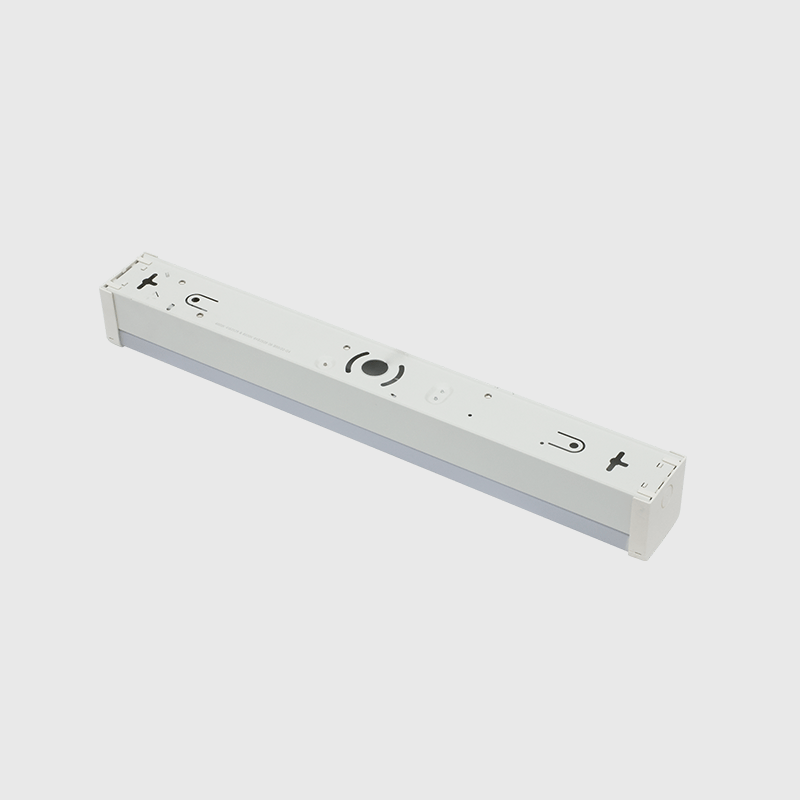

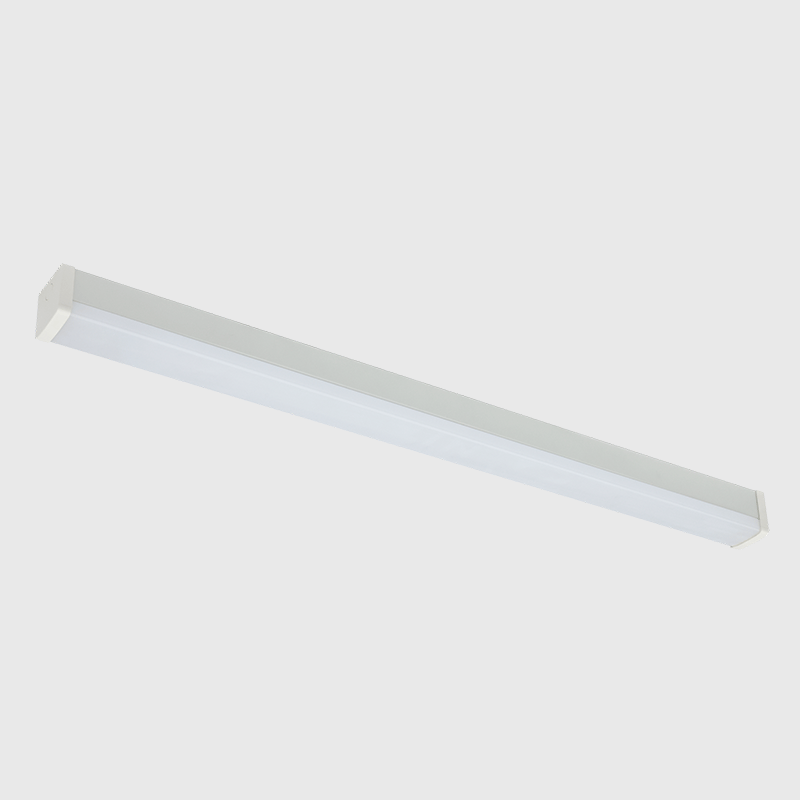

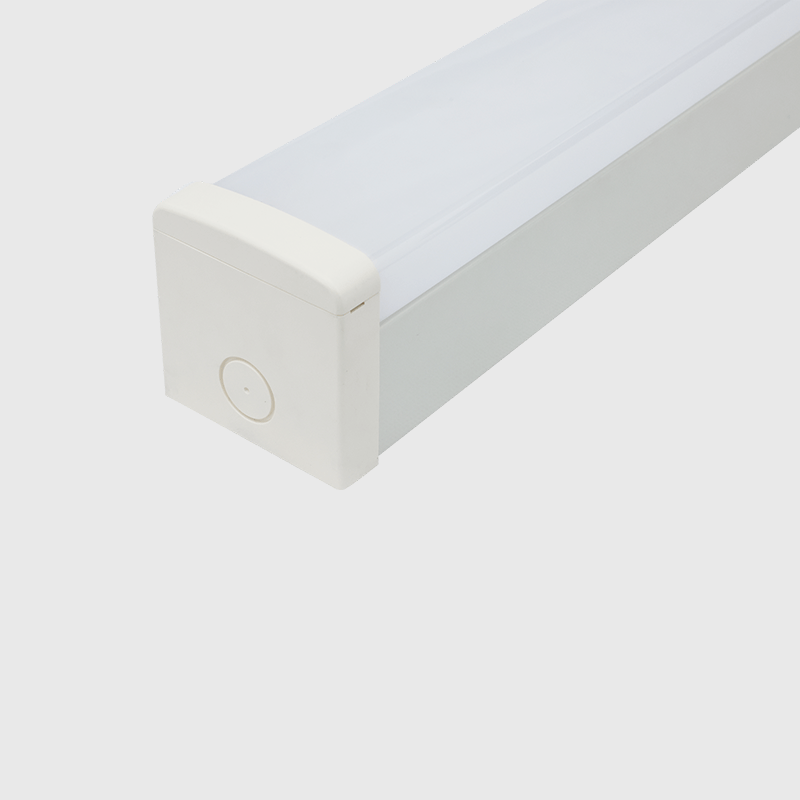

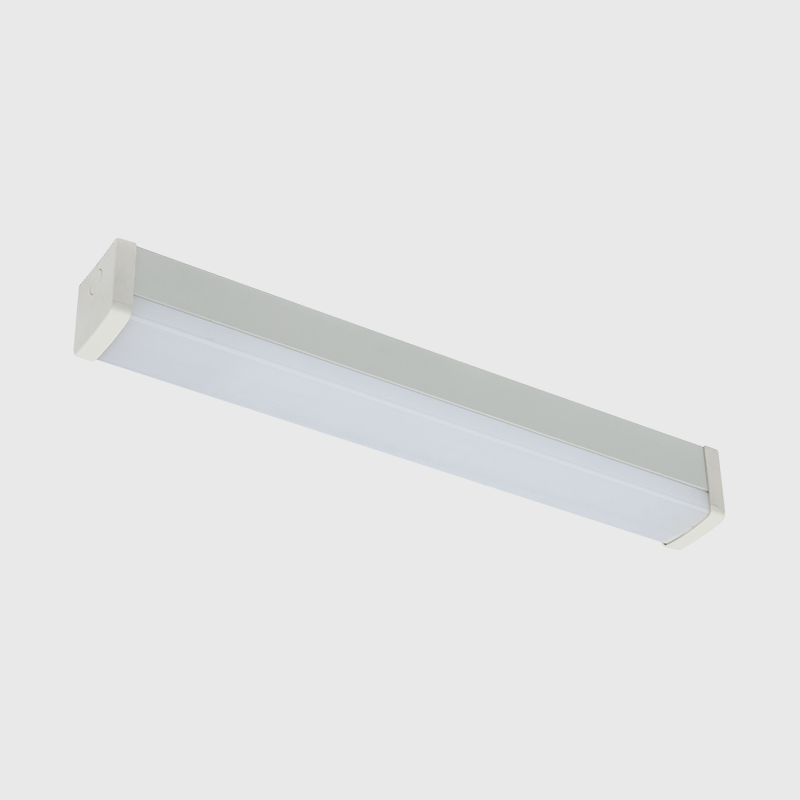

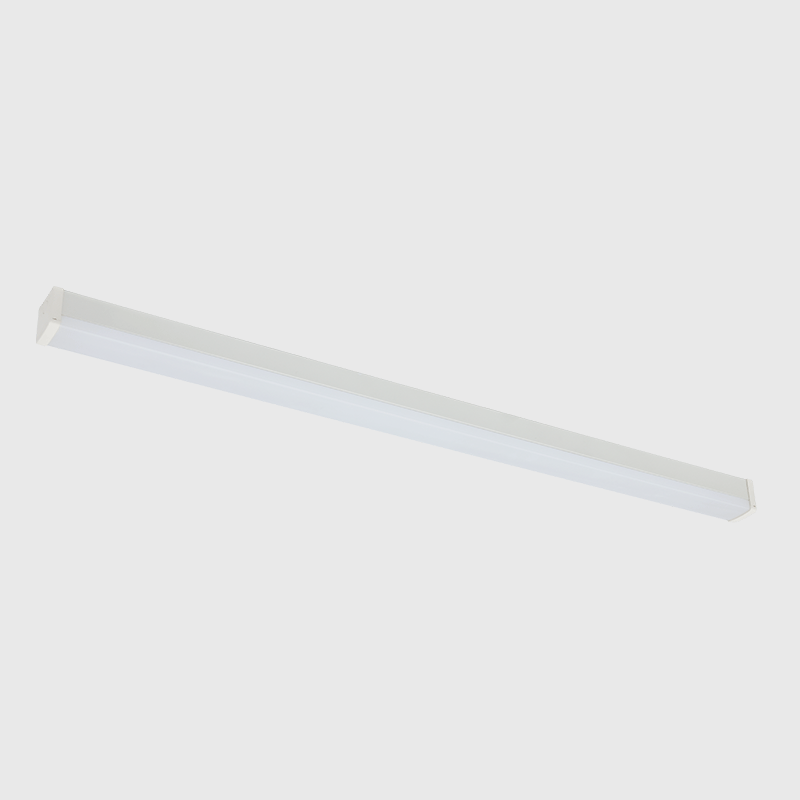

BT08

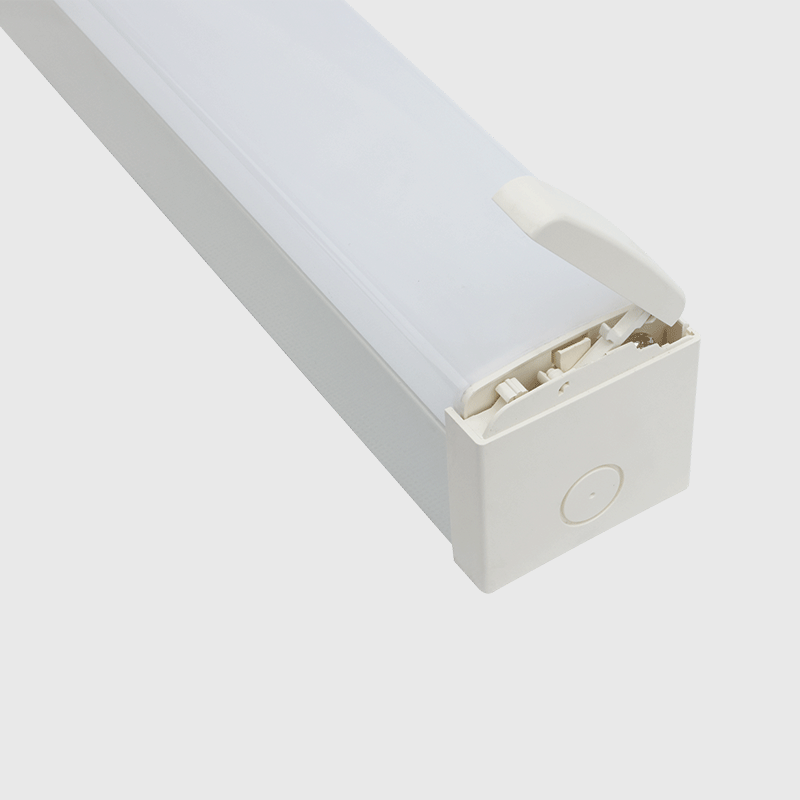

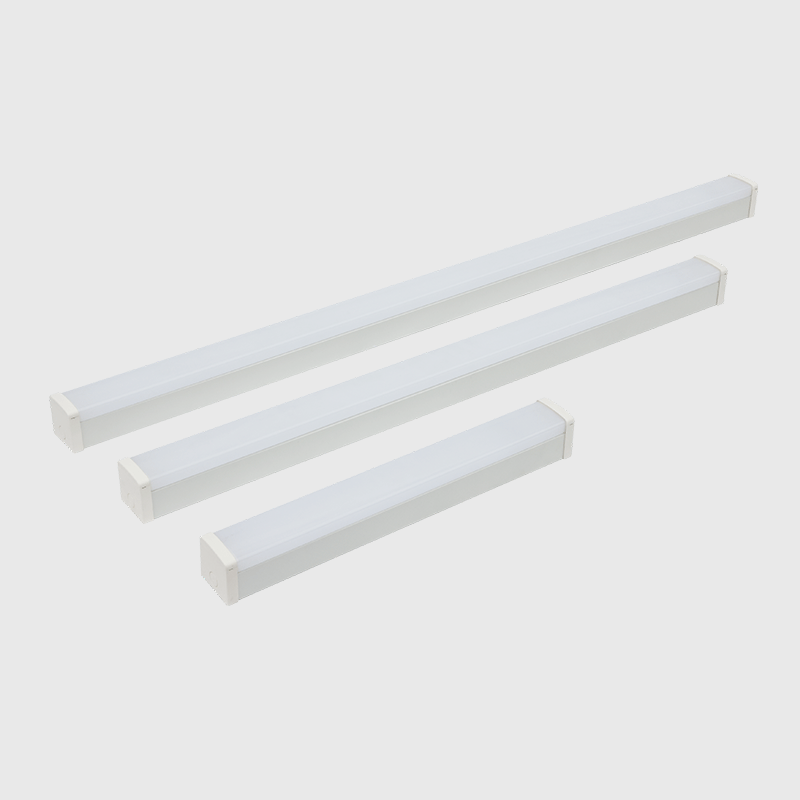

■ 74mm Wide body of sheet steel construction with polyester powder coating ■ Quick release clips and removable connector ■ Opal PC diffuser for even light distribution ■ 20mm knockout for easy through-wiring, conduits or cable glands ■ Insect-proof sealed LED module makes it easy to install and maintain ■ Available for surface mounted, suspended or wall mounted installation ■ Length: 600mm, 1200mm, 1500mm
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP20>5 Years18-50WAC 220-240V80+120°Cold Rolled Steel-20℃ ~ 40℃Surface&Supended
  • Dimensions


  • Technical Data
    Item CodeDescriptionPower Selectable（W）Efficiency(lm/w)

    CCT(K) (3 Levels)

    		Dimensions(mm)Weight(KG)
    LIF-BT08BB2DDEEBT08 20W 2FT Color Selectable18W130
    		2700-6500603X74X740.8
    LIF-BT08BB2DDEEDBT08 20W 2FT Color Selectable+Sensor18W1302700-6500603X74X740.9
    LIF-BT08BB2DDEE/MEBT08 20W 2FT Color Selectable +EM18W1302700-6500603X74X741.2
    LIF-BT08BB4DDEEBT08 40W 4FT Color Selectable36W/30W/25W/20W130
    		2700-65001164X74X741.5
    LIF-BT08BB4DDEEDBT08 40W 4FT Color Selectable+Sensor36W/30W/25W/20W1302700-65001164X74X741.6
    LIF-BT08BB4DDEE/MEBT08 40W 4FT Color Selectable+ EM36W/30W/25W/20W1302700-65001164X74X741.9
    LIF-BT08BB5DDEEBT08-50W 5FT Color Selectable50W/45W/35W/30W130
    		2700-65001500X74X741.8
    LIF-BT08BB5DDEEDBT08 50W 5FT Color Selectable+Sensor50W/45W/35W/30W1302700-65001500X74X741.9
    LIF-BT08BB5DDEE/MEBT08 50W 5FTColor Selectable+ EM50W/45W/35W/30W1302700-65001500X74X742.2
    Suffix “DD” can be 27, 30, 35, 40, 45, 50, 57, 65 or CS, indicating the different CCT of LED multiply by 100 in K,

    CS means white-tunable over a range of 2700K-6500K.

    Suffix “EE” can be 80, 85, 90, 95, indicating the different CRI of LED.
