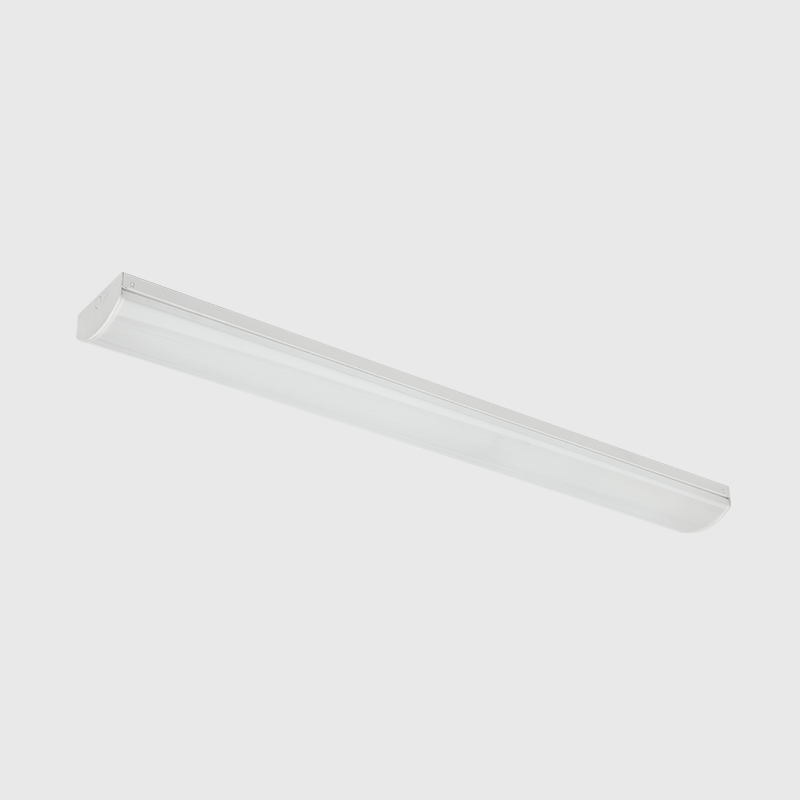

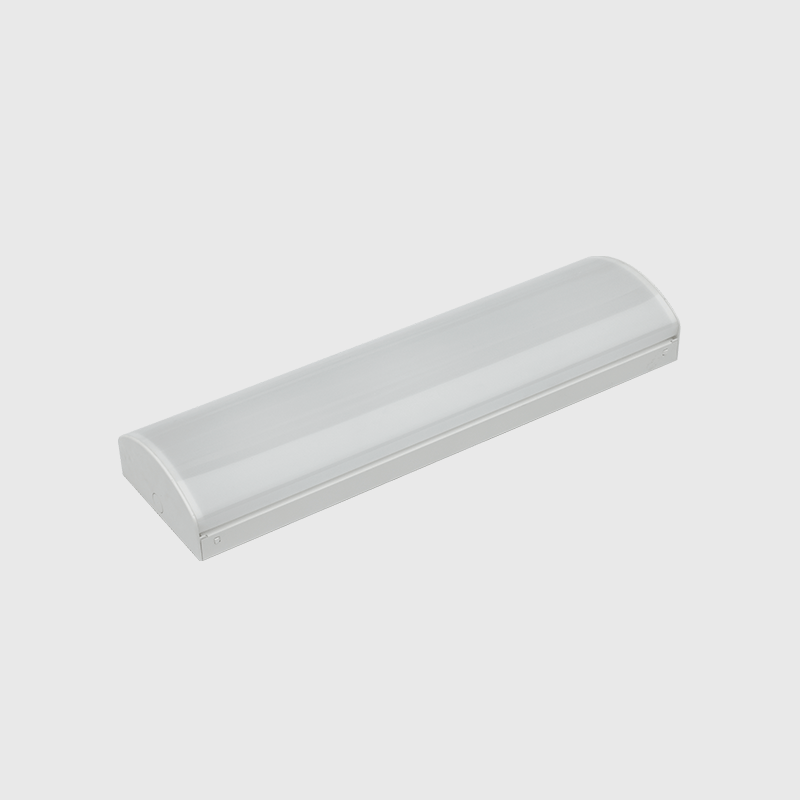

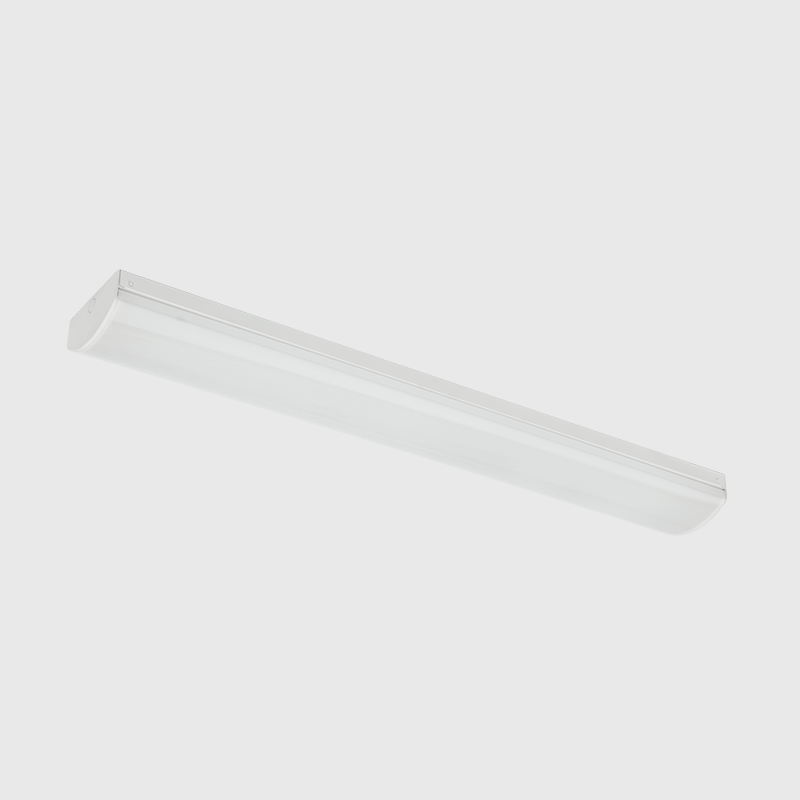

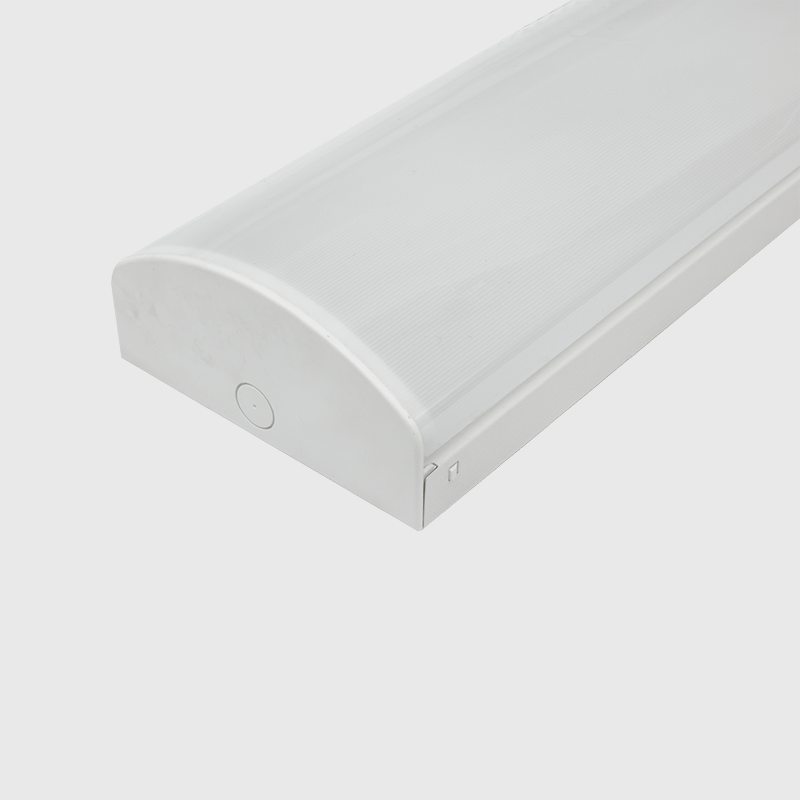

BT02

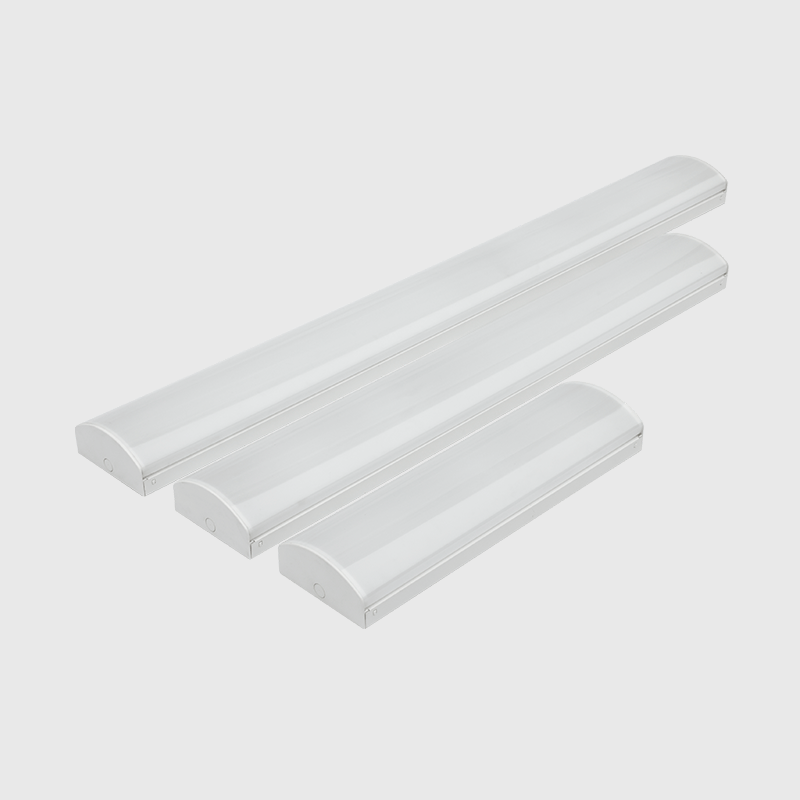

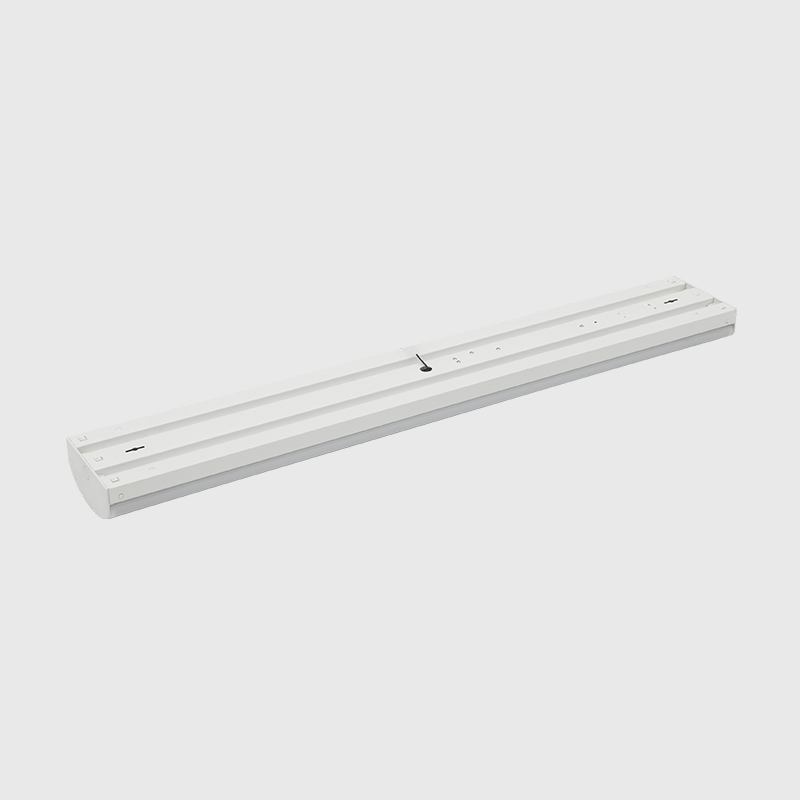

■ 170mm Wide body allows for covering of conventional batten fixing points ■ Quick and easy to install, high efficiency (130lm/W) ■ Body of sheet steel construction with polyester powder coating ■ Opal PC diffuser for even light distribution ■ Available at 0-10V dimming, DALI dimming, Motion Sensor, Color Selectable & Lumen Selectable,Emergency Backup Kit ■ Available for surface mounted, suspended or wall mounted installation ■ Length: 600mm, 1200mm, 1500mm
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP20>5 YearsSee Technical Table BelowAC 220-240V80+120°Cold Rolled Steel-20℃ ~ 40℃Surface Mounted
  • Dimensions


  • Technical Data
    Item CodeDescriptionPower Selectable (W)Efficiency(lm/w)CCT(K) (3 Levels)Dimensions(mm)Weight(KG)
    LIF-BT02BB2DDEEBT02 20W 2FT Color Selectable20W/17W/14W/10W130
    		2700-6500603X170X791.4
    LIF-BT02BB2DDEEDBT02 20W 2FT Color Selectable+Sensor20W/17W/14W/10W1302700-6500603X170X791.6
    LIF-BT02BB2DDEE/MEBT02 20W 2FT Color Selectable +EM20W/17W/14W/10W1302700-6500603X170X792.0
    LIF-BT02BB4DDEEBT02 40W 4FT Color Selectable40W/30W/26W/23W130
    		2700-65001166X170X792.1
    LIF-BT02BB4DDEEDBT02 40W 4FT Color Selectable+Sensor40W/30W/26W/23W1302700-65001166X170X792.3
    LIF-BT02BB4DDEE/MEBT02 40W 4FT Color Selectable+ EM40W/30W/26W/23W1302700-65001166X170X792.8
    LIF-BT02BB5DDEEBT02 60W 5FT Color Selectable60W/50W/45W/40W130
    		2700-65001500X170X792.5
    LIF-BT02BB5DDEEDBT02 60W 5FT Color Selectable+Sensor60W/50W/45W/40W1302700-65001500X170X792.7
    LIF-BT02BB5DDEE/MEBT02 60W 5FTColor Selectable+ EM60W/50W/45W/40W1302700-65001500X170X793.2

    Suffix “DD” can be 27, 30, 35, 40, 45, 50, 57, 65 or CS, indicating the different CCT of LED multiply by 100 in K,

    CS means white-tunable over a range of 2700K-6500K.

    Suffix “EE” can be 80, 85, 90, 95, indicating the different CRI of LED.
