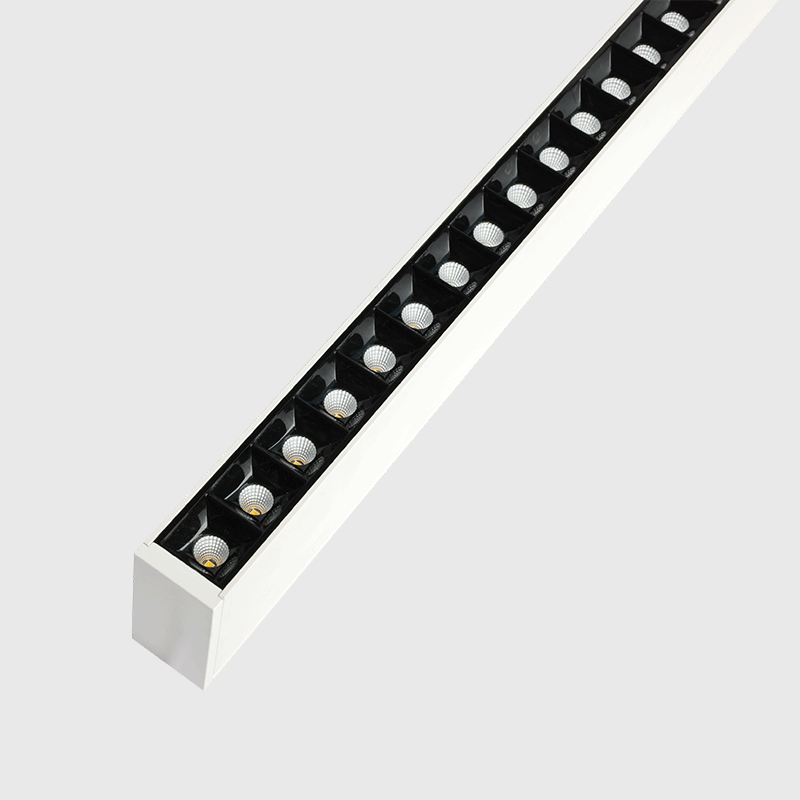

LL05 3570 Louver
■ Body of Housing made of high quality extruded aluminum with powder coating ■ Downward or up down lighting version for selection ■ Downward lighting with Louver lens offers UGR19, efficiency 120lm/w ■ Using magnet instead of screws fixed on the endcap ■ Available at 600mm, 1200mm, 1500mm, and customize size as required ■ 1-10V, DALI，Bluetooth dimming options is available
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP20≥5 Years20~60WAC 220-240V80+15°/24°/36°AL60630℃ ~ 40℃Suspended
  • Dimensions


  • Technical Data
    Item CodeDescriptionPower (W)Lumen Output(LM)CCT(K)Dimensions(mm)Weight(KG)Dimmable

    LL05-0404022D0APCD100

    		1200mm 48W 120lm/W 4000K with louver reflector485760
    		40001290X35X702.1No

    LL05-0504022D0APCD100

    		1500mm 50W 110lm/W 4000K with louver reflector56600040001590X35X702.8No
    * Colour temperatures available 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
