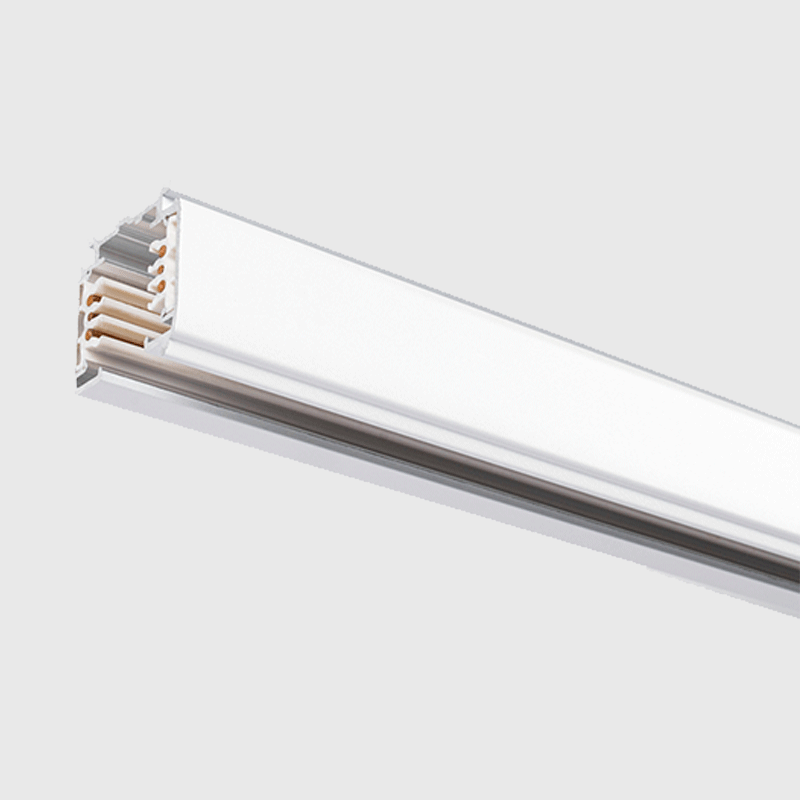

3 Circuit DALI Track System

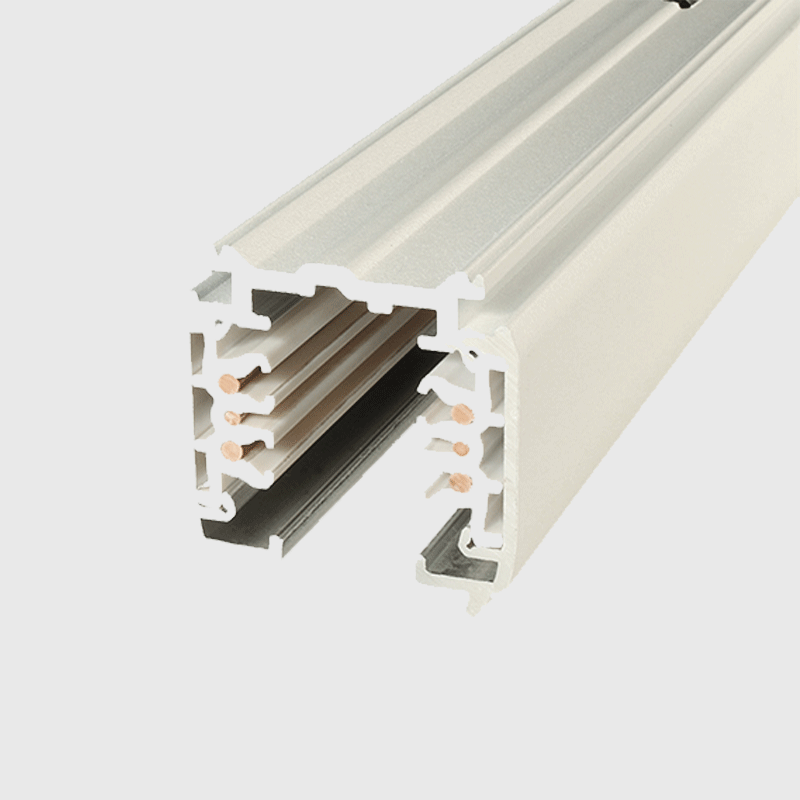

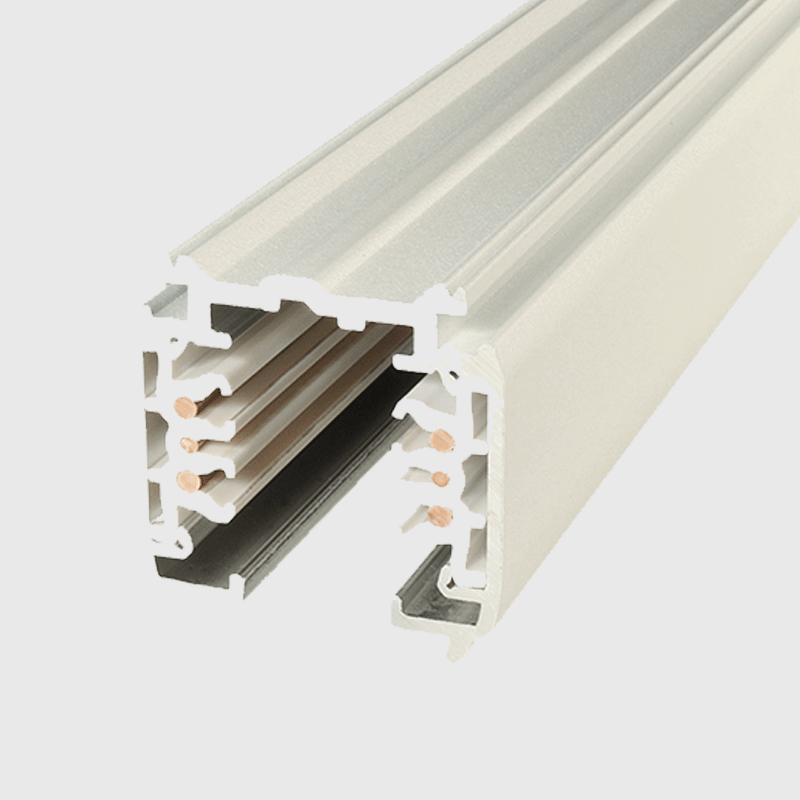

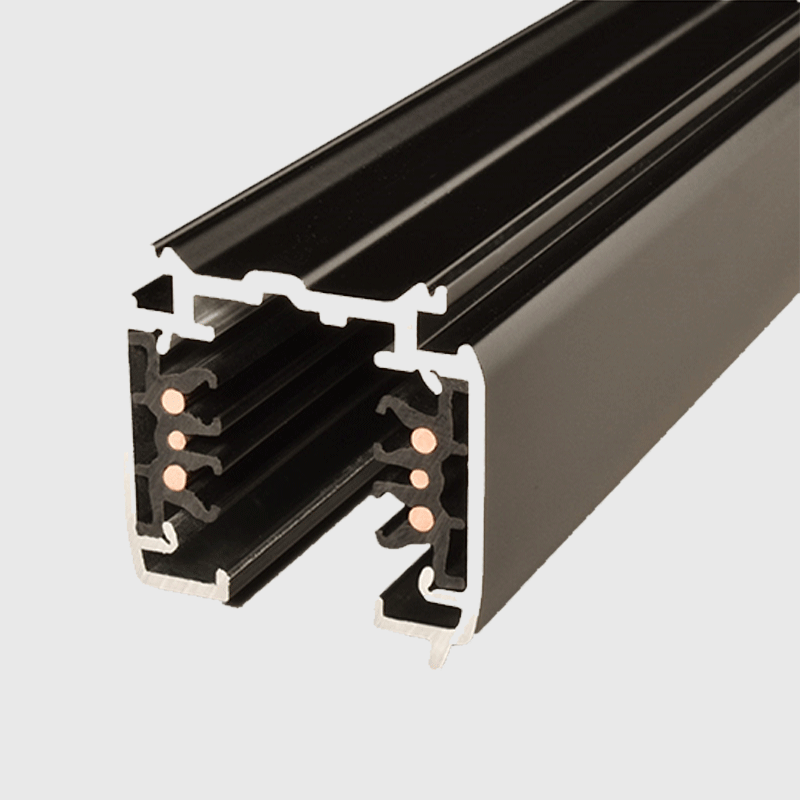

■ 52mm wide structure is easily for installation at job site ■ Special made 3 circuit track system, a perfect solution with DALI system ■ Firmly crimped insulation and conductors for superior mechanical strength and electrical reliability ■ Integral polarity ridge ensures proper connector and fixture installation ■ Fixtures supported by aluminum trac extrusion to provide maximum weight bearing capacity and to ensure reliable contact with electrical conductors ■ Available at 1200mm，2000mm，2400mm，3000mm and customized size ■ Available in white or black painted colors
Consult
  • General Specifications
    IP RatingWarrantyVoltageHousing MaterialOperating TemperatureMounting
    IP20≥5 YearsAC 220~240V  10AAL6063-20℃ ~ 40℃Suspended
  • Dimensions


  • Permitted mechanical loads


  • Track Accessories


  • Connector
  • Technical Data
    Item CodeDescriptionDimensions LxWxH(mm)
    LF114-36003600 x 52 x 41mm White 6 wires 3-Circuit DALI3600 x 52 x 41mm
    LF114-30003000 x 52 x 41mm White 6 wires 3-Circuit DALI3000 x 52 x 41mm
    LF114-24002400 x 52 x 41mm White 6 wires 3-Circuit DAL2400 x 52 x 41mm
    LF114-20002000 x 52 x 41mm White 6 wires 3-Circuit DALI2000 x 52 x 41mm
    LF114-18001800 x 52 x 41mm White 6 wires 3-Circuit DALl1800 x 52 x 41mm
    LF114-16001600 x 52 x 41mm White 6 wires 3-Circuit DALI1600 x 52 x 41mm
    LF114-12001200 x 52 x 41mm White 6 wires 3-Circuit DALI1200 x 52 x 41mm
    LF125Steel hanging wire and accessories, 5 meters long
