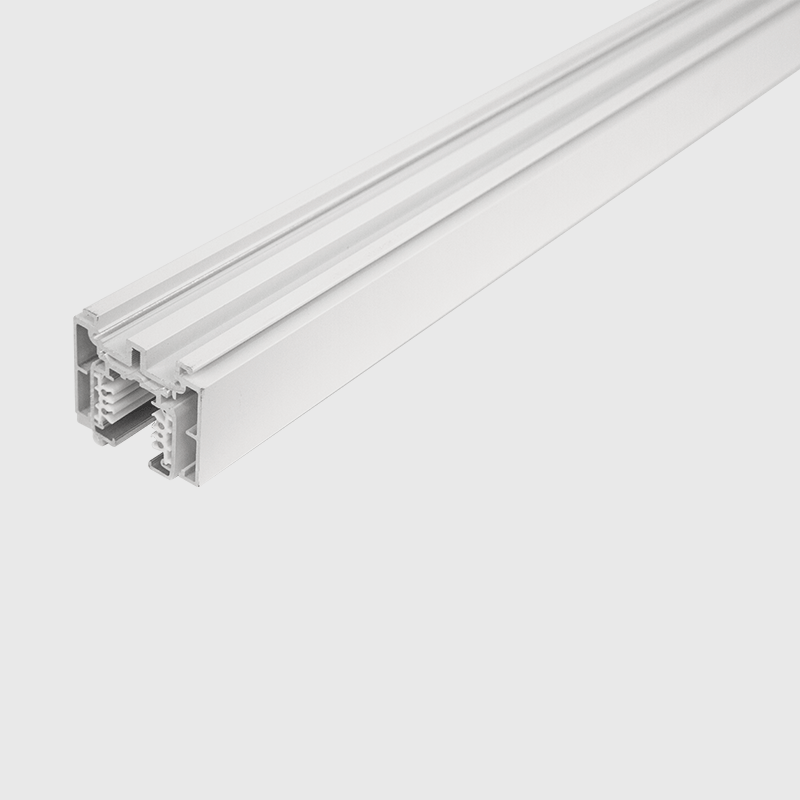

3L3N Track System
■ 52mm wide structure is easily for installation at job site ■ Special made 3 circuit track system, a perfect solution system ■ Firmly crimped insulation and conductors for superior mechanical strength and electrical reliability ■ Integral polarity ridge ensures proper connector and fixture installation ■ Fixtures supported by aluminum trac extrusion to provide maximum weight bearing capacity and to ensure reliablecontact with electrical conductors ■ Available at 1200mm，2000mm，2400mm，3000mm and customized size ■ Available in white or black painted colors
Consult
  • General Specifications
    IP RatingWarrantyVoltageHousing MaterialOperating TemperatureMounting
    IP20≥5 YearsAC 220~240V  10AAL6063-20℃ ~ 40℃Suspended
  • Connector


  • Track Accessories


  • Applications

    Supermarket,Retail stores,Warehous ect.

  • Dimensions


  • Permitted mechanical loads


  • Technical Data
    Item CodeDescriptionDimensions LxWxH(mm)
    LF-PRO-T06363600 x 52x 47mm White 3L3N Track System3600x52x47
    LF-PRO-T06303000 x 52 x 47mm White 3L3N Track System3000x52x47
    LF-PRO-T06242400 x 52 x 47mm White 3L3N Track System2400x52x47
    LF-PRO-T06202000 x 52 x 47mm White 3L3N Track System2000x52x47
    LF-PRO-T06181800 x 52 x 47mm White 3L3N Track System1800x52x47
    LF-PRO-T06161600 x 52 x 47mm White 3L3N Track System1600x52x47
    LF-PRO-T06121200 x 52 x 47mm White 3L3N Track System1200x52x47
    LF125Steel hanging wire and accessories, 5 meters long
