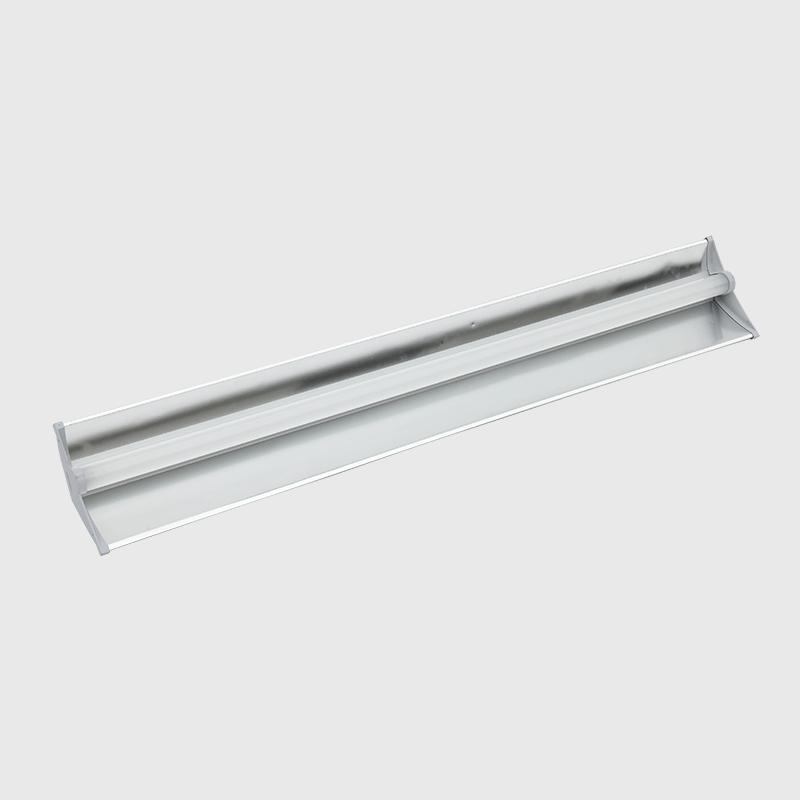

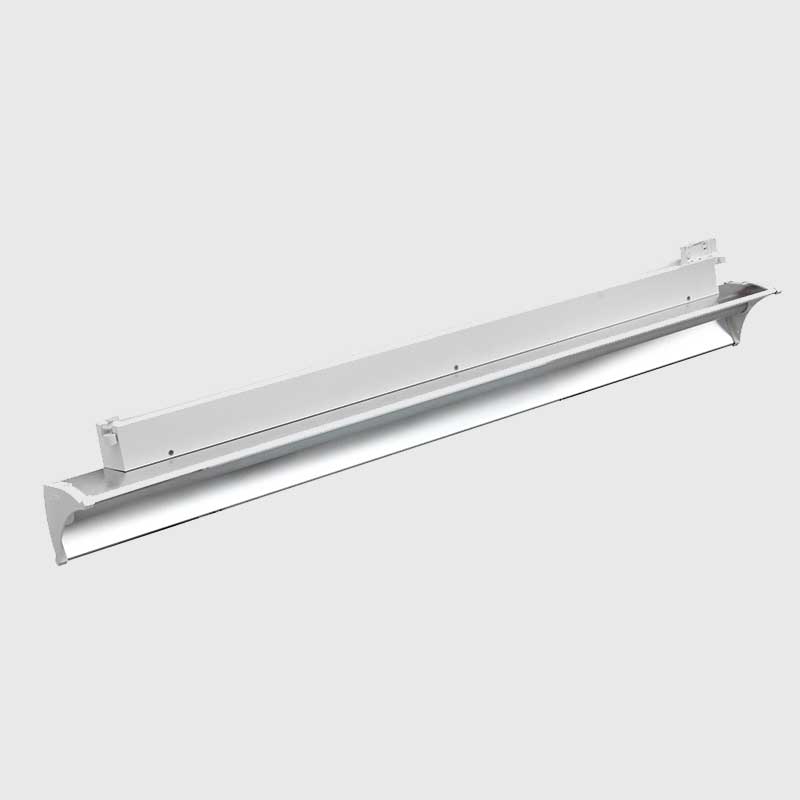

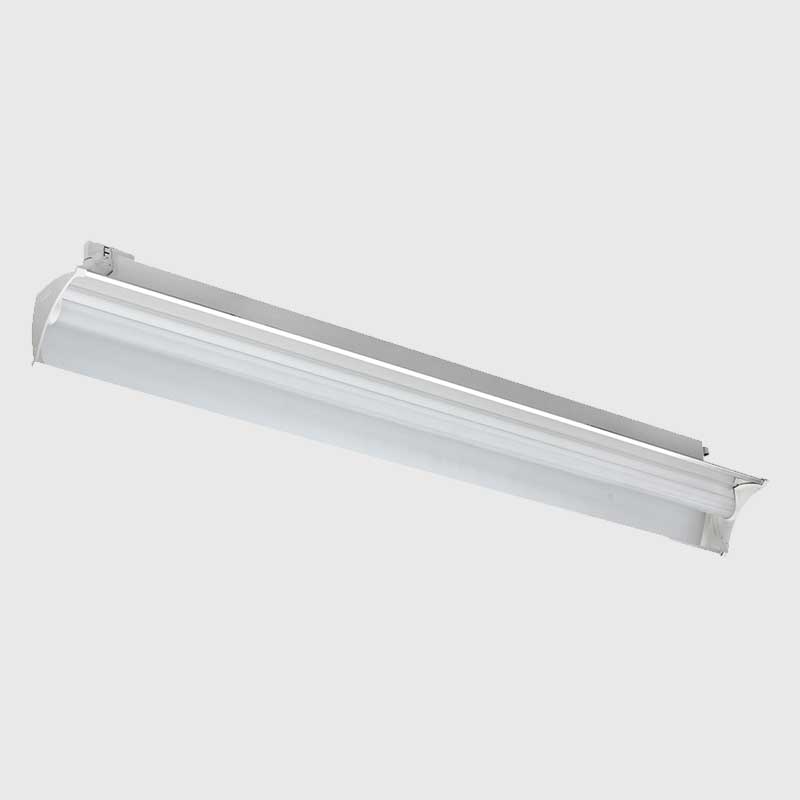

LT01B

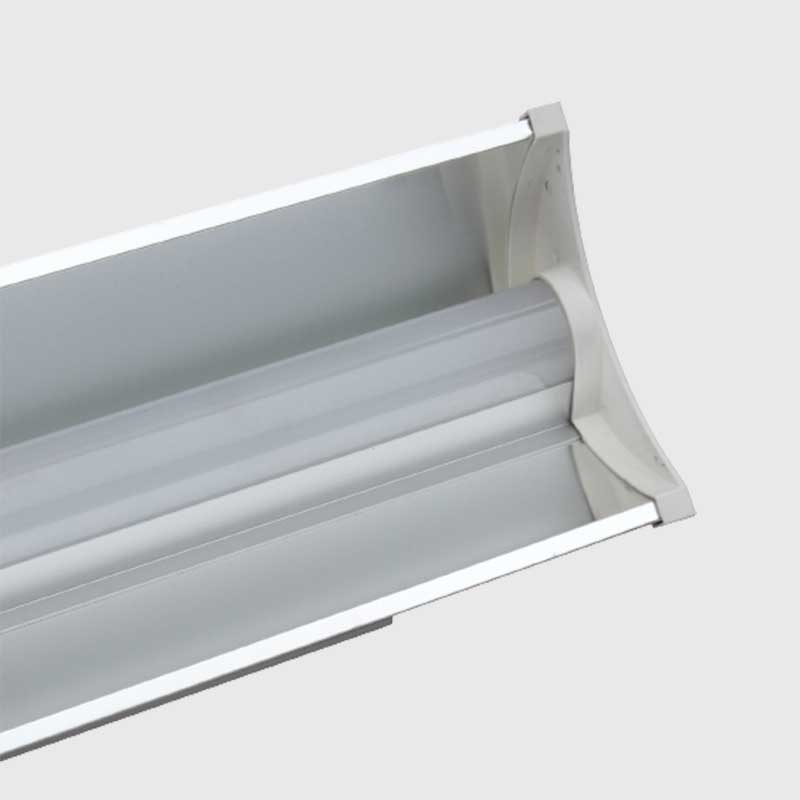

■ Professional designed optical reflector for wall wash ■ Special designed reflector with highly efficient ALANOD Miro5 ■ Special made Global adaptor for 3 circuit DALI track system ■ High efficiency 145Im/W ■ Available at 600mm，1200mm and customized size ■ DALI or 0-10V dimmable is optional
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageHousing Painting colorCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP20≥5 Years15～30WAC 220-240VWhite,Black80+100°Cold Rolled Steel-20℃ ~ 40℃Track
  • Dimensions


  • Technical Data
    Item CodeDescriptionPower(W)Lumen Output(LM)CCT(K)Dimensions LxWxH(mm)Weight(KG)
    LED-ITRACK-30W4000C-11200mm TYPE B 30W Asymmetric Reflector30450040001194X116X1804
    LED-ITRACK-15W4000C-1600mm TYPE B 15W Asymmetric Reflector 1522504000694X116X1802.5
    * Colour temperatures available 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
