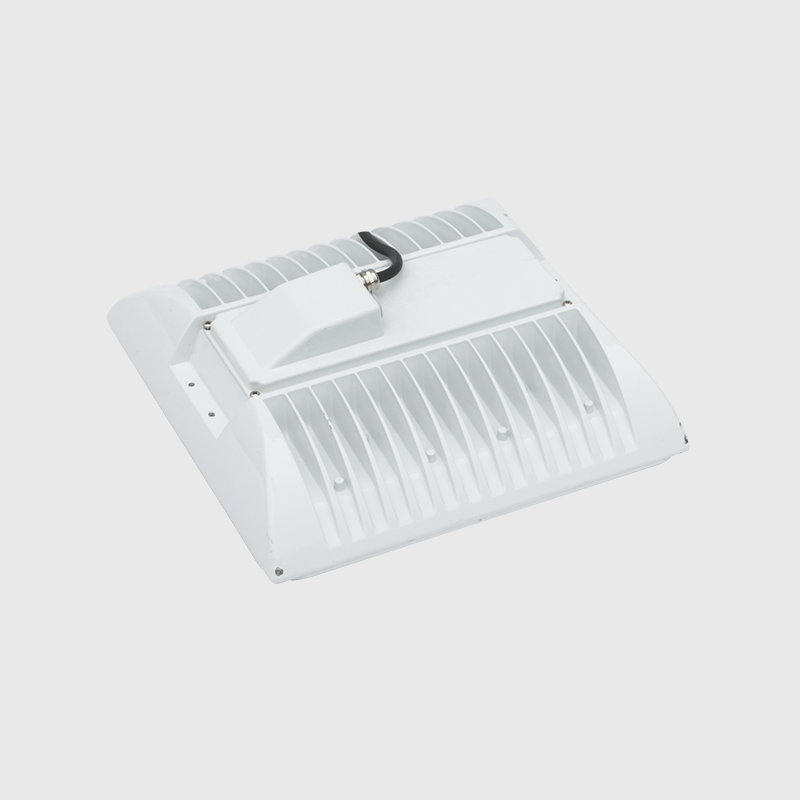

LB01LEDiFurture

LB01

■ Die-cast aluminum body and tempered glass diffuser ■ Silicone rubber gasket seals provide IP65 weather resistance ■ Efficiency 110lm/w reflector system maximizing performance while minimizing glare ■ Completed with different mounting kits as per different mount ways：surface mount, recessed and pole mount ■ No-dim by default, optional dimming/ sensor function /emergency function available

Consult

General Specifications

IP Rating Warranty Watts Input Voltage CRI Beam Angle Housing Material Ambient Temperature Mounting
IP65 ≥5 Years 60~150W AC 220-240V 80+ 75° AL 6063 -10℃ ~ 40℃ Surface，Recessed & Pole mount
Dimensions
Accessories

IP Rating	Warranty	Watts	Input Voltage	CRI	Beam Angle	Housing Material	Ambient Temperature	Mounting
IP65	≥5 Years	60~150W	AC 220-240V	80+	75°	AL 6063	-10℃ ~ 40℃	Surface，Recessed & Pole mount

Technical Data

Item Code	Description	Power（W）	Lumen Output(LM)	CCT(K)	Dimensions LxWxH(mm)	Weight(KG)	Dimmable
LIF-LB01-60W-1	Canopy Light 60W 110lm/W 4000K	60	6600	4000	420x420x100	8.1	No
LIF-LB01-100W-1	Canopy Light 100W 110lm/W 4000K	100	11000	4000	420x420x100	8.1	No
LIF-LB01-110W-1	Canopy Light 110W 110lm/W 4000K	110	13000	4000	420x420x100	8.1	No
LIF-LB01-150W-1	Canopy Light 150W 110lm/W 4000K	150	16000	4000	420x420x100	8.1	No
* Colour temperatures available 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
