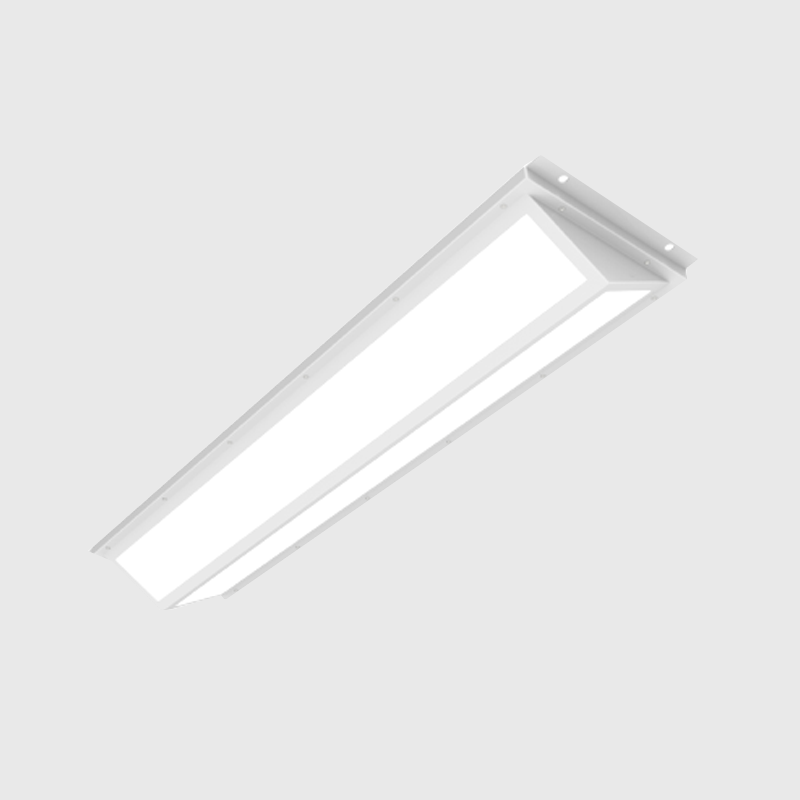

TF17 Surface
■ IK10 and IP65 level for special applications ■ Body of sheet steel construction with polyester powder coating ■ Two sides lighting from triangular structure offers a symmetrical beam ■ Fixed by security screws,safety to prevent assembly ■ 1-10V,DALI dimming options is available ■ Optional sensor function / emergency function available
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageFrequency RangeCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP65>5 Years22～62W220-240Vac50/60Hz80+110°Cold Rolled Steel-20℃ ~ 40℃Surface  Mounting
  • Dimensions


  • Technical Data
    Item CodeDimensions L x W x H (mm)Power ConsumptionColour TemperatureCRILuminous EfficiencyLumen Output(LM)Weight(KG)
    LIF-TF17SBB123DDEE1262X316X95

    22W

    30W

    37W

    52W

    62W

    		4000K80+140 lm/w

    3000

    4200

    5200

    7200

    8500


    		18

    Suffix “DD” can be 27, 30, 35, 40, 45, 50, 57, 65, indicating the different CCT multiply by 100 in K.

    Suffix “EE” can be 80, 85, 90, 95, indicating the different CRI of LED.
