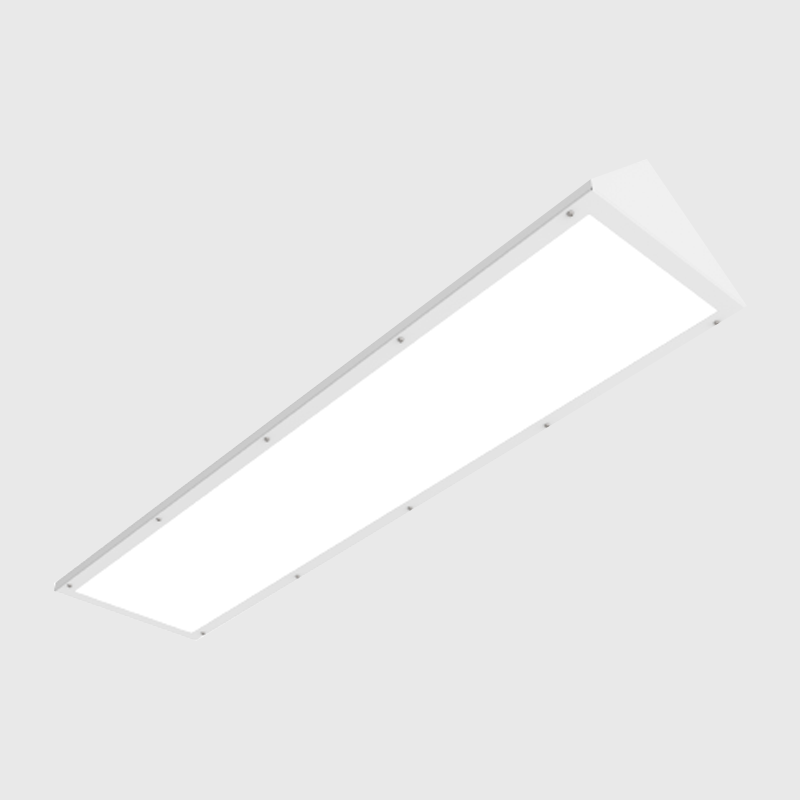

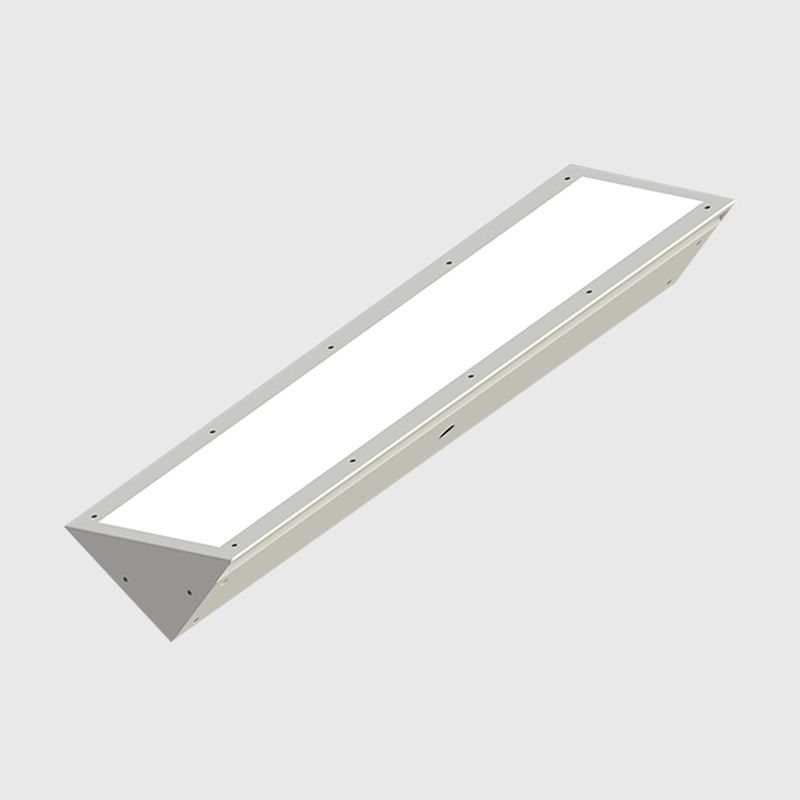

TF17 Corner
■ IK10 and IP65 level for corner installation applications ■ Body of sheet steel construction with polyester powder coating ■ Fixed by security screws,safety to prevent assembly ■ Excellent PC diffuser offers an uniform illuminated appearance ■ High efficiency 140 lm/w ■ Power switchable 22W/30W/37W/50W/60W ■ 1-10V,DALI dimming options is available ■ Optional sensor function / emergency function available
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageFrequency RangeCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP65>5 Years22～60W220-240Vac50/60Hz80+110°Cold Rolled Steel-20℃ ~ 40℃Corner
  • Dimensions


  • Technical Data
    Item CodeDimensions L x W x H (mm)Power ConsumptionColour TemperatureCRILuminous EfficiencyLumen Output(LM)Weight(KG)
    LIF-TF17CBB123DDEE1200X340X173

    22W

    30W

    37W

    50W

    60W

    		4000K80+140 lm/w

    3000

    4200

    5200

    7000

    8400


    		18

    Suffix “DD” can be 27, 30, 35, 40, 45, 50, 57, 65, indicating the different CCT multiply by 100 in K.

    Suffix “EE” can be 80, 85, 90, 95, indicating the different CRI of LED.
