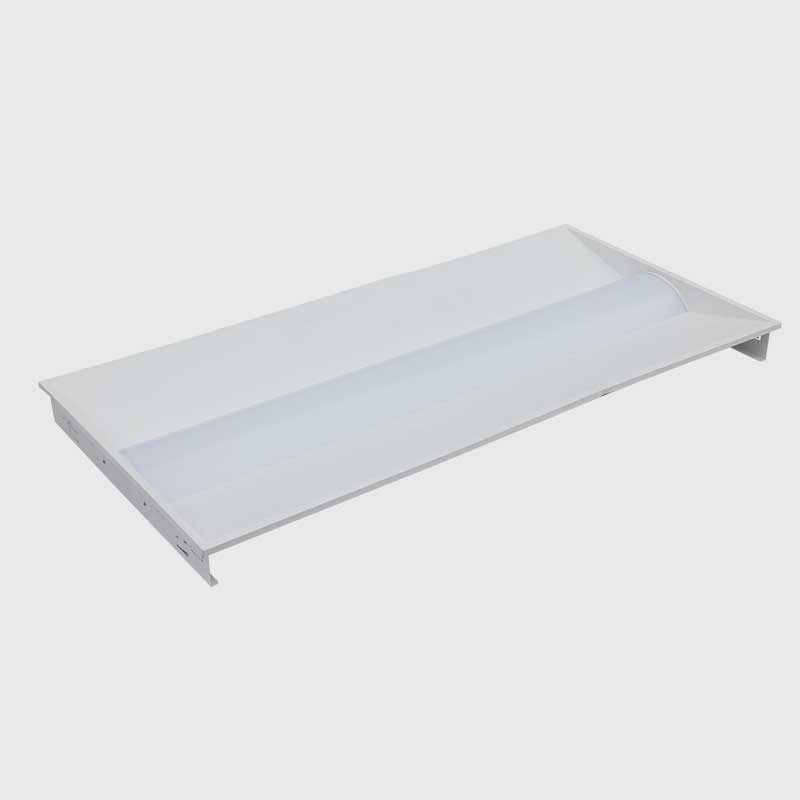

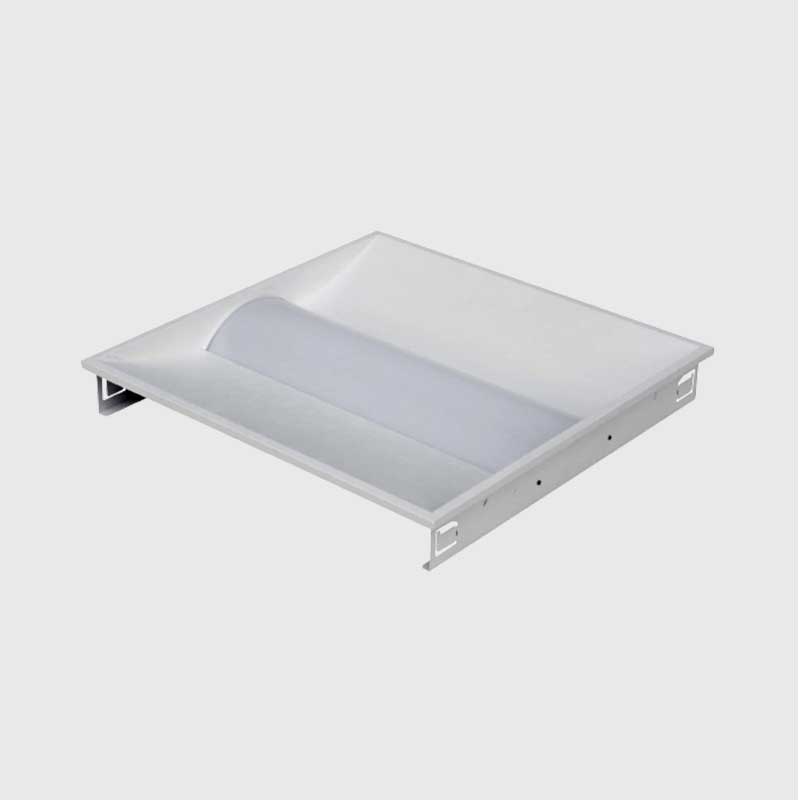

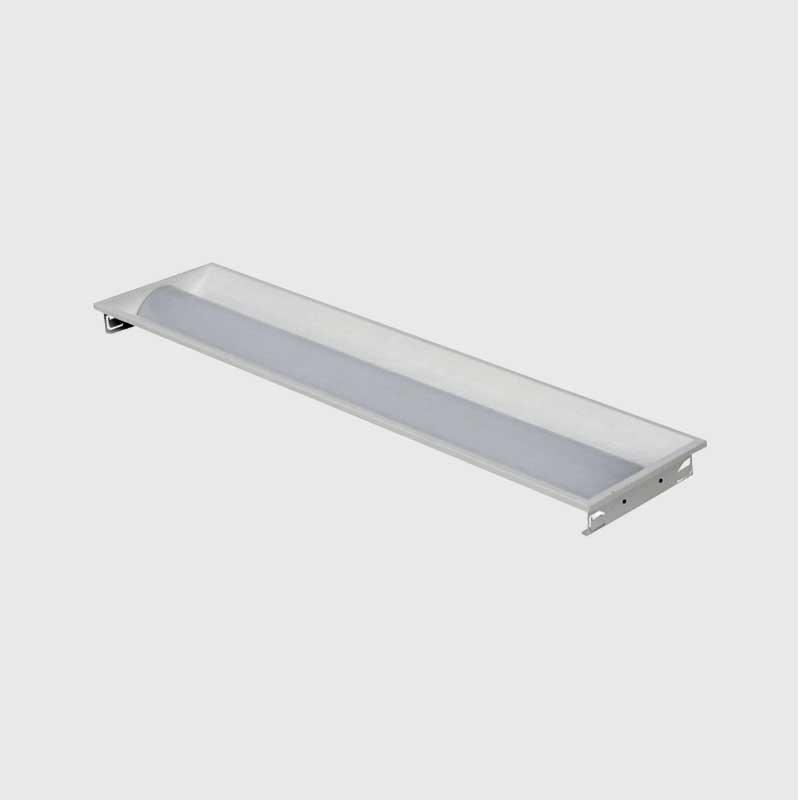

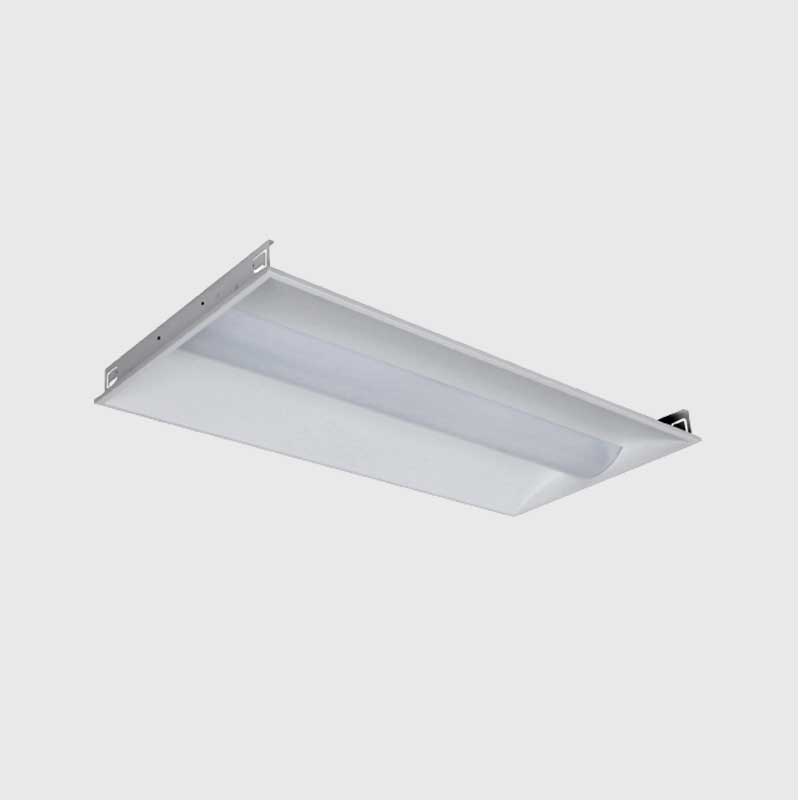

TF04

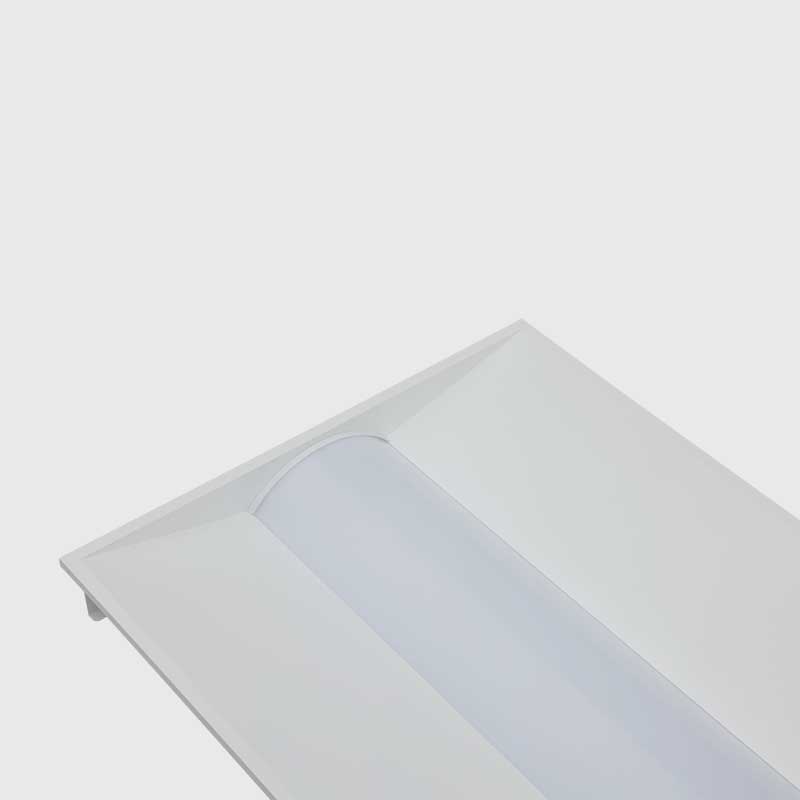

■ Both Options for UGR19 or UGR22 ■ High Transmission curved opal diffuser, high efficiency 135lm/w ■ Molded endcap seamless join the diffuser to the body ■ Designed for a standard T-Bar grid, also suitable for plaster ceilings by using plaster master frames ■ Available at 600x300mm，600x600mm, 1200x300mm & 1200x600mm and customized size ■ Non-dim and DALI as standard. Various control options are available via customization ■ Emergency or sensor options available ■ Air ventilation slot available
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP20>5 Years8~42W220-240Vac80+120°Cold Rolled Steel-20℃ ~ 40℃Recessed
  • Dimensions

    TF04 尺寸图.png

  • Technical Data
    Item CodeDimensions L x W x H (mm)Power ConsumptionColour TemperatureCRILuminous EfficiencyLumen Output(LM)Weight(KG)

    LIF-TF04BB063DDEEFF

    		595x295x62

    8W

    10W

    12W

    14W

    20W

    24W

    28W

    32W

    36W

    42W

    		4000K
    		80+135 lm/w

    1080

    1300

    1600

    1800

    2700

    3200

    3700

    4300

    4800

    5600

    		    1.3

    LIF-TF04BB066DDEEFF

    		595x595x80

    8W

    10W

    12W

    14W

    20W

    24W

    28W

    32W

    36W

    42W

    		4000K80+135 lm/w

    1080

    1300

    1600

    1800

    2700

    3200

    3700

    4300

    4800

    5600

    		    2.4

    LIF-TF04BB123DDEEFF

    		1195x295x62

    8W

    10W

    12W

    14W

    20W

    24W

    28W

    32W

    36W

    42W

    		4000K80+135 lm/w

    1080

    1300

    1600

    1800

    2700

    3200

    3700

    4300

    4800

    5600

    		    2.4

    LIF-TF04BB126DDEEFF

    		1195x595x80

    8W

    10W

    12W

    14W

    20W

    24W

    28W

    32W

    36W

    42W

    		4000K80+135 lm/w

    1080

    1300

    1600

    1800

    2700

    3200

    3700

    4300

    4800

    5600

    		    5.1

    Suffix “DD” can be 27, 30, 35, 40, 45, 50, 57, 65, indicating the different CCT multiply by 100 in K.

    Suffix “EE” can be 80, 85, 90, 95, indicating the different CRI of LED.

    Suffix “FF” can be 19, 22, indicating the different UGR of light.
