TF09LEDiFurture

TF09

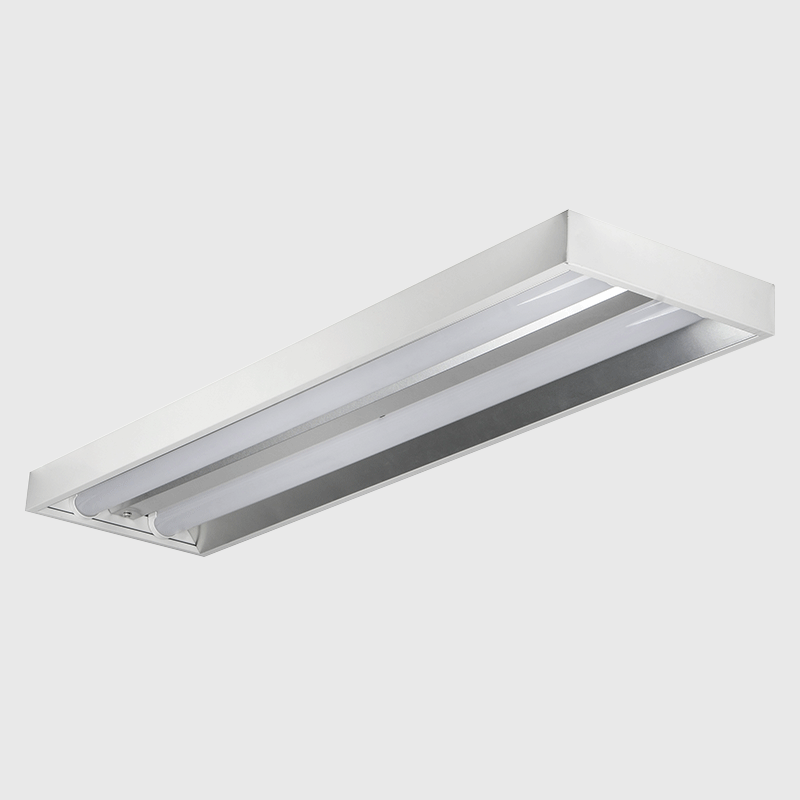

■ Perfect choice for high ceiling, high efficiency(140lm/W)and high power (up to 80W) ■ Body of sheet steel construction with polyester powder coating ■ PC diffuser offers a uniform illuminated appearance ■ Designed for surface mounted and recessed installation ■ Available at 1200X300,1200X600,1500X300,and size customizable ■ Non-dim and DALI as standard. Various control options are available via customization ■ Emergency or sensor options available

Consult

General Specifications

IP Rating	Warranty	Watts	Input Voltage	Frequency Range	CRI	Beam Angle	Housing Material	Ambient Temperature	Mounting
IP40	≥5 Years	40~80W	AC 220-240V	50/60Hz	80+	120°	Cold Rolled Steel	-20℃ ~ 40℃	Surface & Recessed mounting

Dimensions
Accessories

Technical Data

Item Code	Dimensions LxWxH(mm)	Power(W)	CCT(K)	CRI	Luminous Efficiency	Lumen Output(LM)	Weight(KG)
LIF-TF09RBB126DDEE	1194x594x62	65	4000	80+	140 lm/w	9100	8.8
LIF-TF09SBB123DDEE	1180x295x62	65	4000	80+	140 lm/w	9100	4
LIF-TF09RBB126DDEE	1194x594x62	30	4000	80+	140 lm/w	4080	8.8
LIF-TF09SBB123DDEE	1180x295x62	30	4000	80+	140 lm/w	4080	4
LIF-TF09SBB153DDEE	1494x295x62	30	4000	80+	140 lm/w	4080	5.1
Suffix “DD” can be 27, 30, 35, 40, 45, 50, 57, 65, indicating the different CCT multiply by 100 in K. Suffix “EE” can be 80, 85, 90, 95, indicating the different CRI of LED.

Application
