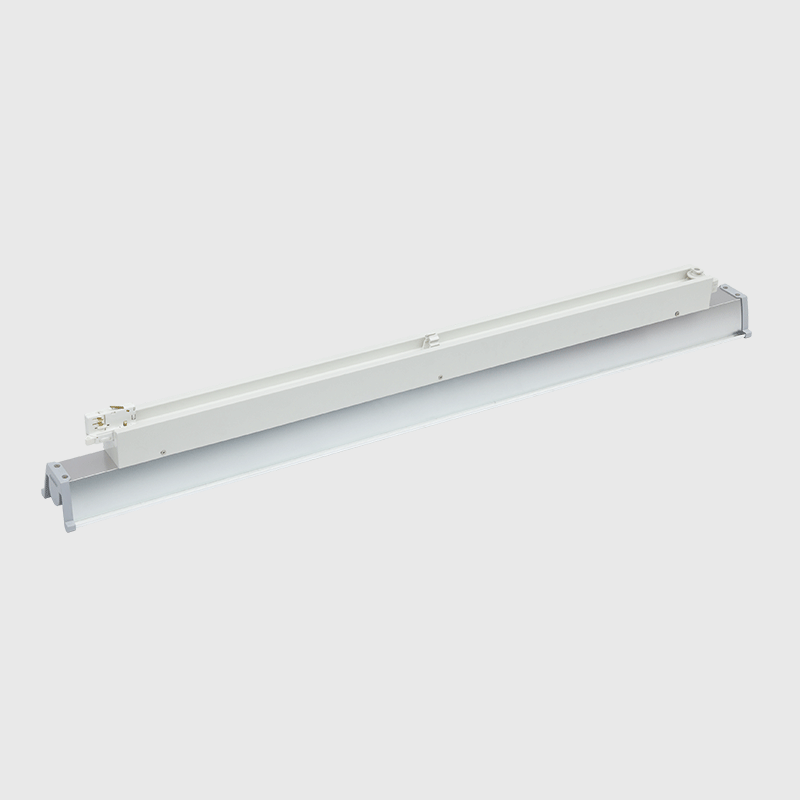

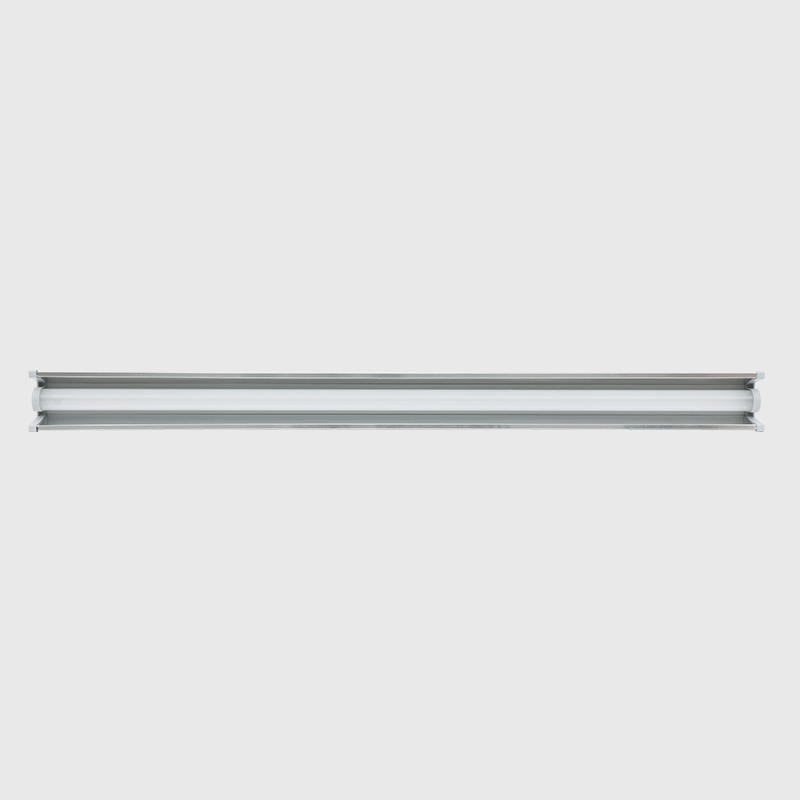

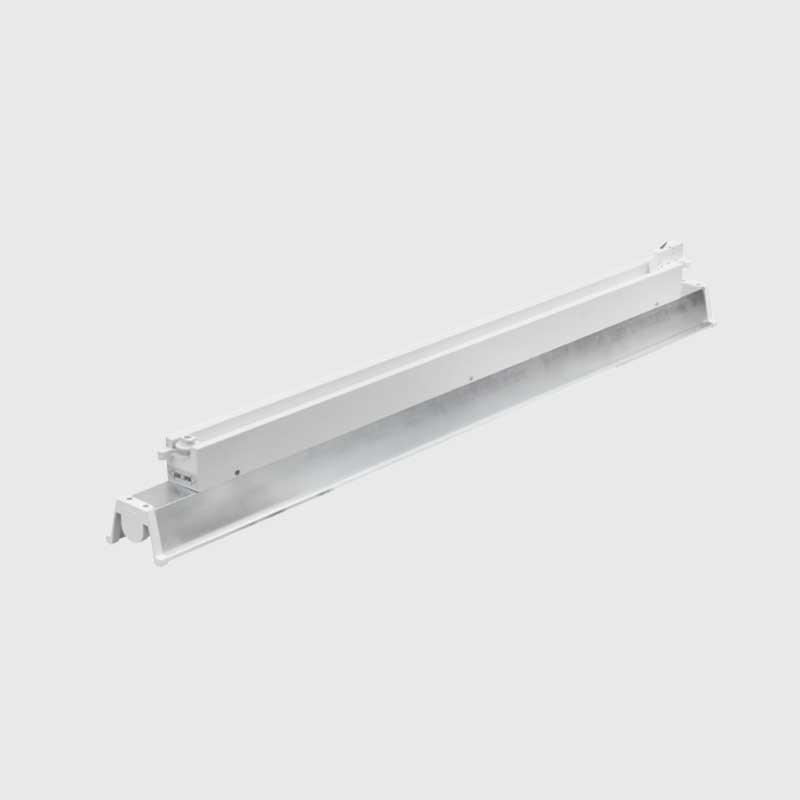

LT01A
■ Professional designed optical reflector ■ Special designed reflector with highly efficient ALANOD Miro5 ■ Special made Global adaptor for 3 circuit DALI track system ■ High efficiency 145Im/w ■ Available at 600mm，1200mm and customized size ■ DALI or 0-10V dimmable is optional
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageHousing Painting colorCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP20≥5 Years23～45WAC 220-240VWhite,Black80+110°Cold Rolled Steel-20℃ ~ 40℃Track
  • Dimensions


  • Technical Data
    Item CodeDescriptionPower(W)Lumen Output(LM)CCT(K)Dimensions LxWxH(mm)Weight(KG)
    LED-ITRACK-45W3500C-11200mm TYPE A 45W Wide Reflector Symmetric45675035001194X100X1404
    LED-ITRACK-23W3500C-1600mm TYPE A 23W Wide Reflector Symmetric2334503500694X100X1402.5
    LED-ITRACK-45W3500C-EM1200mm TYPE A 45W Wide Reflector Emergency45675035001194X100X1405
    * Colour temperatures available 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
