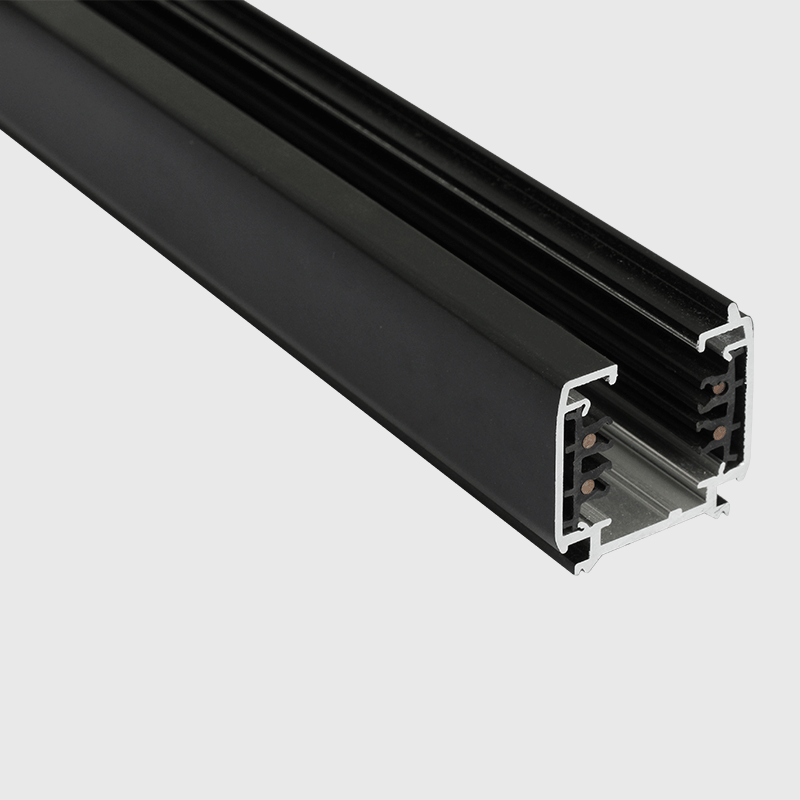

2L2N/3L1N 4 Wires Track System
■ 35mm wide structure is easily for installation at job site ■ Special made 4 wires track system, a perfect solution ■ Firmly crimped insulation and conductors for superior mechanical strength and electrical reliability ■ Integral polarity ridge ensures proper connector and fixture installation ■ Fixtures supported by aluminum trac extrusion to provide maximum weight bearing capacity and to ensure reliable contact with electrical conductors ■ Available at 1200mm，2000mm，2400mm，3000mm and customized size ■ Available in white or black painted colors
Consult
  • General Specifications
    IP RatingWarrantyVoltageHousing MaterialOperating TemperatureMounting
    IP20≥5 YearsAC 220~240V  10AAL6063-20℃ ~ 40℃Suspended
  • Dimensions


  • Permitted mechanical loads


  • Technical Data
    Item CodeDescriptionDimensions LxWxH(mm)
    LF120-40004000 x 35.2 x 35.5mm White 4 wires DALI4000 x 35.2 x 35.5mm
    LF120-30003000 x 35.2 x 35.5mm White 4 wires DALI3000 x 35.2 x 35.5mm
    LF120-24002400 x 35.2 x 35.5mm White 4 wires DALI2400 x 35.2x 35.5mm
    LF120-20002000 x 35.2 x 35.5mm White 4 wires DALI2000 x 35.2x 35.5mm
    LF120-18001800 x 35.2 x 35.5mm White 4 wires DALI1800 x 35.2 x 35.5mm
    LF120-16001600 x 35.2 x 35.5mm White 4 wires DALI1600 x 35.2x 35.5mm
    LF120-12001200 x 35.2 x 35.5mm White 4 wires DALI1200 x 352 x 35.5mm
    PRO-EZ0448Steel hanging wire and accessories, 5 meters long
  • Connector


  • Track Accessories
