LT03

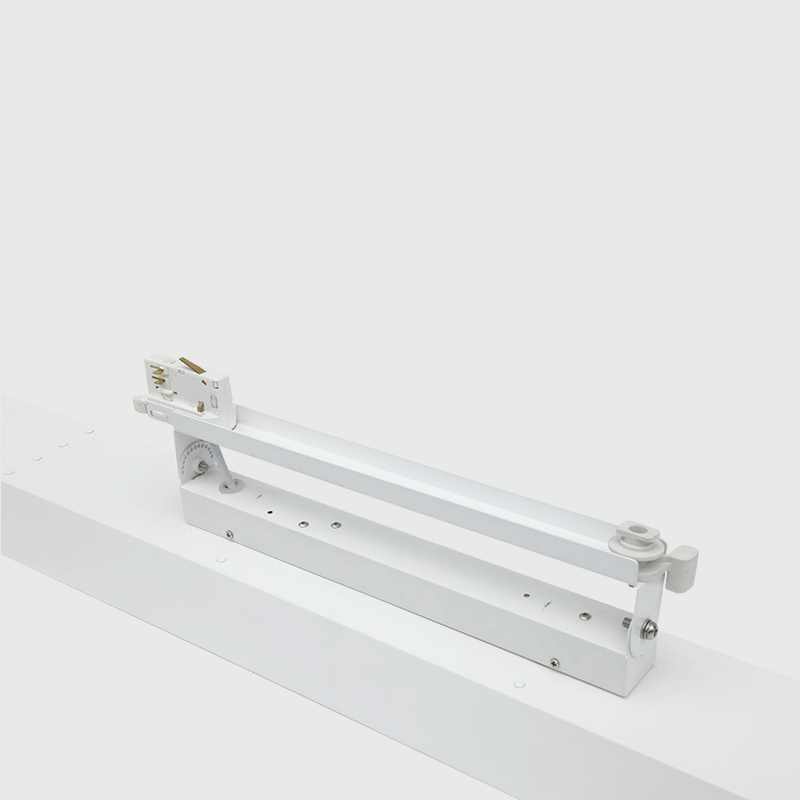

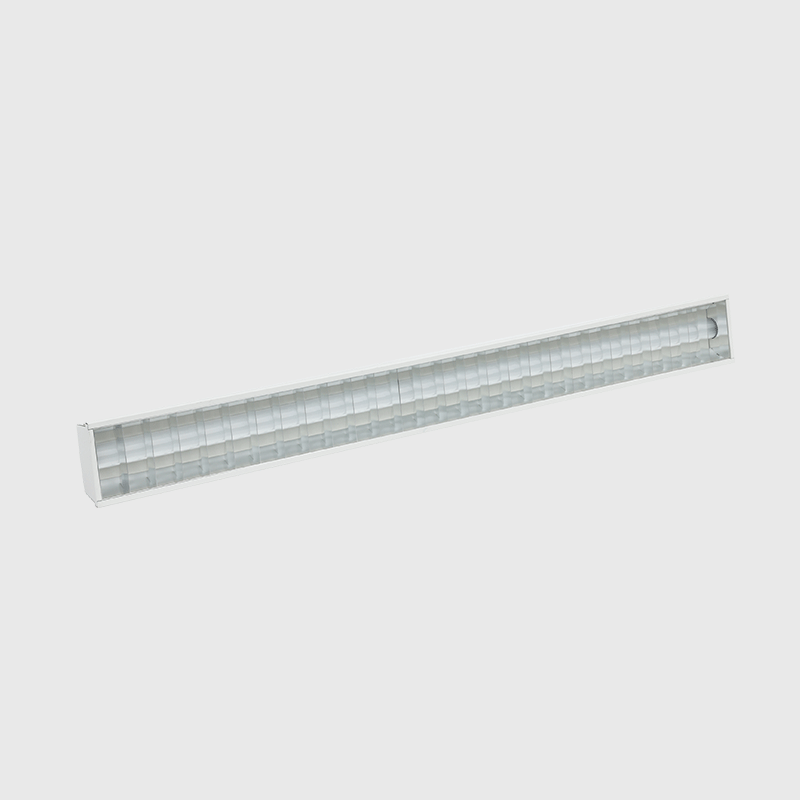

■ Two options reflector with highly efficient ALANOD Miro5 or PC ■ Special made Global adaptor for 3 circuit DALI track system ■ High efficiency 120Im/w ■ Available at 1200mm and customized size ■ DALI or 0-10V dimmable is optional
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageHousing Painting colorCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP20≥5 Years20WAC 220-240VacWhite,Black80+110°Cold Rolled Steel-20℃ ~ 40℃Track
  • Dimensions


  • Technical Data
    Item CodeDescriptionPower(W)Lumen Output(LM)CCT(K)Dimensions(mm)Weight(KG)Dimmable
    LIF-LT03W20W4012A1200mm 20W 120lm/W 4000K Louver20W250040001137x120x1372.5No
    LIF-LT03W20W4012B1200mm 20W 110lm/W 4000K PC20W230040001235x149x1372.1No
