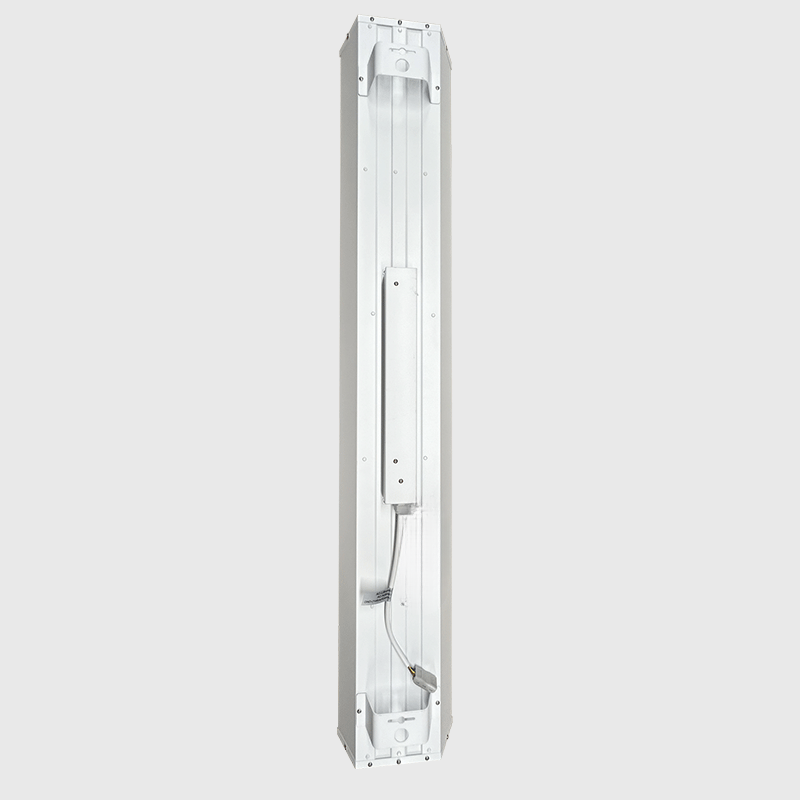

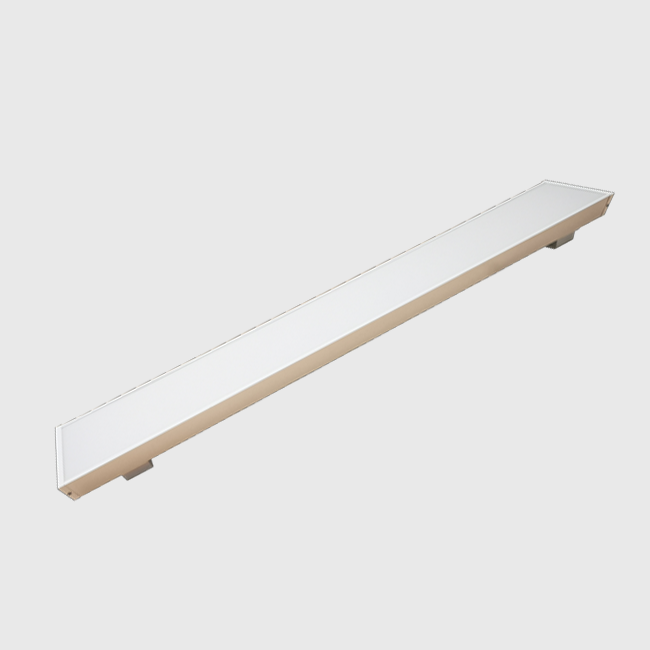

HB01
■ Efficiency up to 140lm/W ■ 0.4mm Cold-rolled steel body, finished in white polyester powder coating ■ Middle light transmittance diffuser provides an even light output ■ Power switchable 90W/100W/110W/120W or 130W/140W/150W/160W ■ Mounting: suspended ■ 1-10V,DALI dimming options is available ■ Optional sensor function / emergency function available
Consult
  • General Specifications
    IP RatingWarrantyWattsInput VoltageFrequency RangeCRIBeam AngleHousing MaterialAmbient TemperatureMounting
    IP40>5 Years90~160W220-240Vac50/60Hz80+110°Cold Rolled Steel-20℃ ~ 40℃Suspended
  • Dimensions


  • Technical Data
    Item CodeDimensions(mm)Power(W)Colour TemperatureCRILuminous EfficiencyLumen Output(LM)Gross Weight(KG)
    LIF-HB01-120W-11200x202x9590W
    100W
    110W
    120W    		5000K80+140 lm/w12000
    14000
    15400
    17000    		2.5
    LIF-HB01-160W-11200x202x95130W
    140W
    150W
    160W    		5000K80+140 lm/w18000
    19500
    21000
    22000    		2.5
    * Colour temperatures available 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
