Home - Product - Curved Linear Luminaire - Cylinder D600 ~ D1500

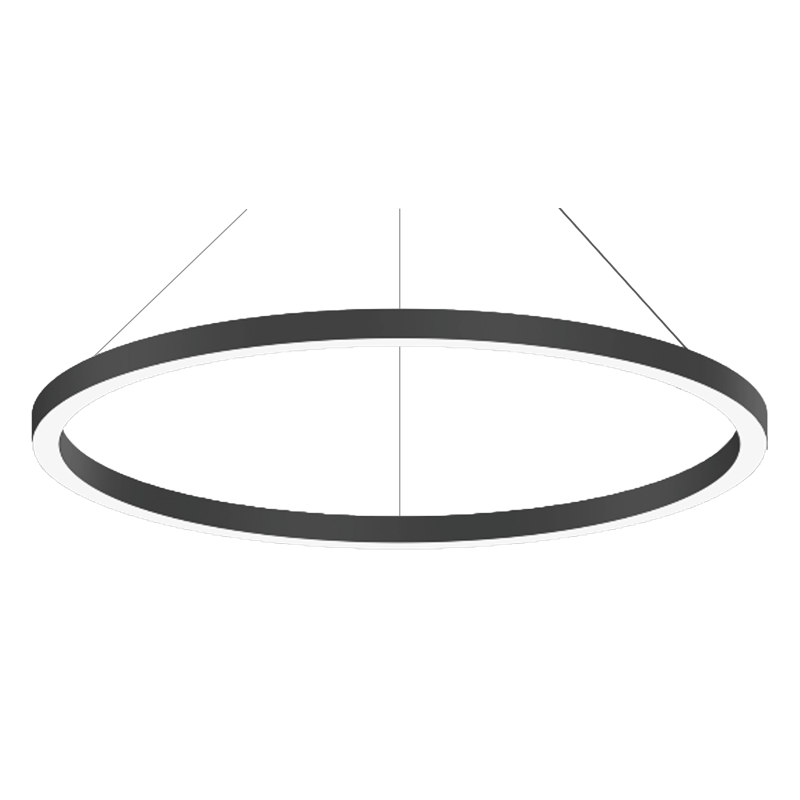

Cylinder D600 ~ D1500
● Unlimited design freedom via extruded aluminum profile via diameter from 0.6m ~ 1.5m ● High performance diffuser with ultrasonic welding to achieve uniform illumination and no light leakage ● Installation by suspension and toolless maintenance ● Durable surface powder coated in white, black or silver ● Excellent thermal management for long life span ● High light efficiency up to 140lm/W at CRI80
Consult
  • Specification

    Diameter

    (mm)

    Profile Size (mm)

    Light

    Distribution

    Mounting

    Method

    CRI

    CCT

    Wattage

    Flux

    D600

    W60 x H75

    Down Light

    Suspension

    Ra 80

    4000K

    48W

    6,700lm

    D800

    W60 x H75

    Down Light

    Suspension

    Ra 80

    4000K

    62W

    8,600lm

    D1000

    W60 x H75

    Down Light

    Suspension

    Ra 80

    4000K

    78W

    10,900lm

    D1200

    W60 x H75

    Down Light

    Suspension

    Ra 80

    4000K

    96W

    13,400lm

    D1500

    W60 x H75

    Down Light

    Suspension

    Ra 80

    4000K

    115W

    16,100lm


  • Product data & specification documents

    Ledifuture Curved Linear Light_Cylinder D600~D1500_Datasheet.pdf
